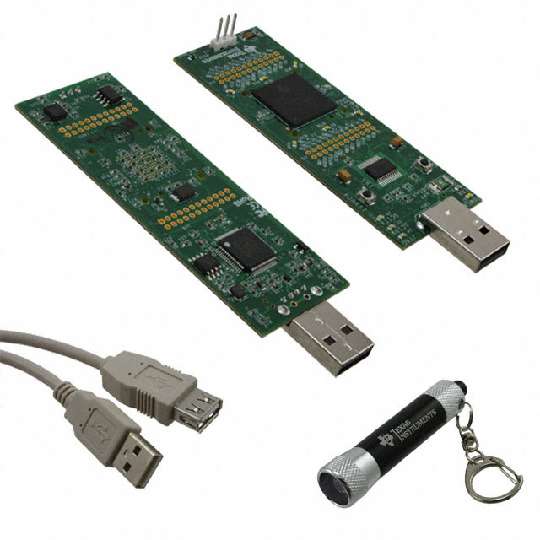

TEXAS INSTRUMENTS TMDX570LS31USB 开发套件, USB, HERCULES系列, TMS570LS31X
The 是一个TMS570LS31x Hercules USB stick . It is 理想的用于评估Hercules 平台 of safety微控制器s. The TMS570LS31 集成s the ARM Cortex-R4F floating point CPU which offers an efficient 1.6DMIPS/MHz和has 配置s which can run up to 180MHz providing up to 288DMIPS. The TMS570LS31 has up to 3MB集成 闪存和up to 256KB data RAM 配置s with single bit error correction和double bit error detection. The 闪存存储器 on this设备是一个non-volatile, electrically erasable和可编程存储器 implemented with a 64bit wide data bus 接口. The 闪存 operates on a 3.3V supply input 用于all read, program和erase operations. When in pipeline mode, the 闪存 operates with a 系统 clock frequency of up to 180MHz. This USB Stick features an集成 XDS100v2 JTAG emulator, access to several key 外部设备pins和is 完整的ly powered by a PC"s USB端口.
- .
- 板载USB XDS100v2 JTAG调试
- .
- 板载SCI至PC串行通讯
- .
- 可接入关键外部设备引脚
- .
- LED, 温度传感器, 光传感器和加速度计
- .
- CAN 收发器
- .
- 一个集成的XDS100v2 JTAG模拟器
