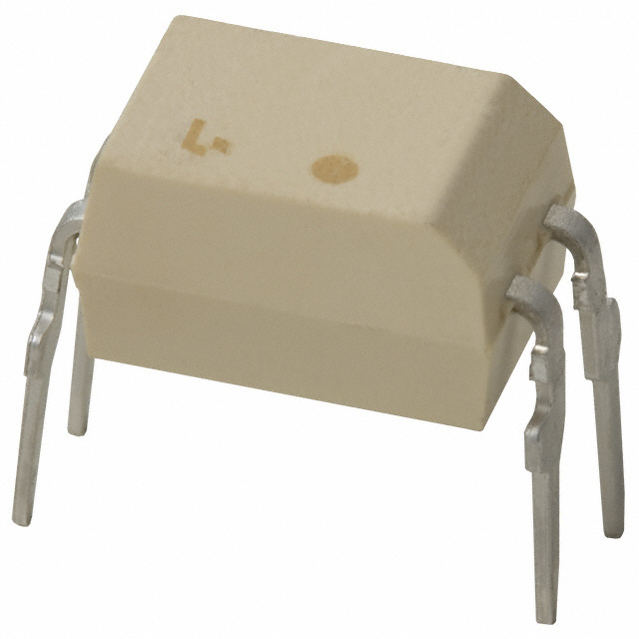

TLP222G

Relay SSR 50mA 1.3V DC-IN 0.12A 350V 4Pin PDIP

Cordless Telephones

PBX

Modems

The series consist of a gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a DIP package. The TLP222G series are a bi-directional switch, which can replace mechanical relays in many applications.

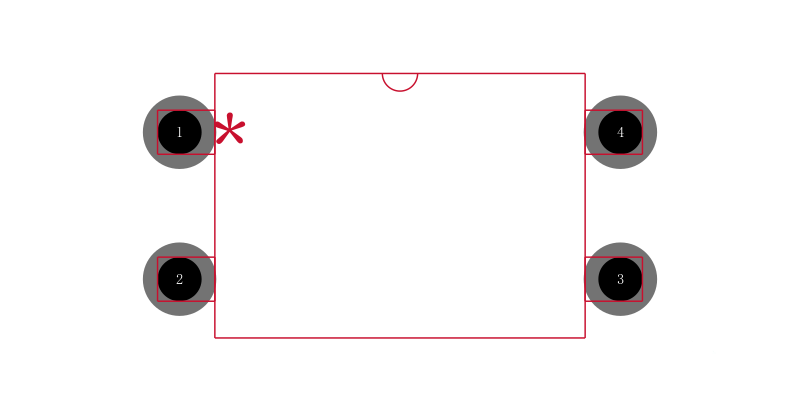

•  TLP222G: 4-pin DIP DIP4, 1-channel type 1-form-A

•  TLP222G-2: 8-pin DIP DIP8, 2-channel type 2-form-A

•  Peak Off-state voltage: 350 V min

•  Trigger LED current: 3 mA max

•  On-state current: 120 mA max

•  On-state resistance: 35 Ωmax, t < 1 s

•  On-state resistance: 50 Ωmax, continuous

•  Isolation voltage: 2500 Vrms min

•  BSI approved: BS EN60065:2002, certificate no.8773  BS EN60950-1:2002, certificate no.8774
