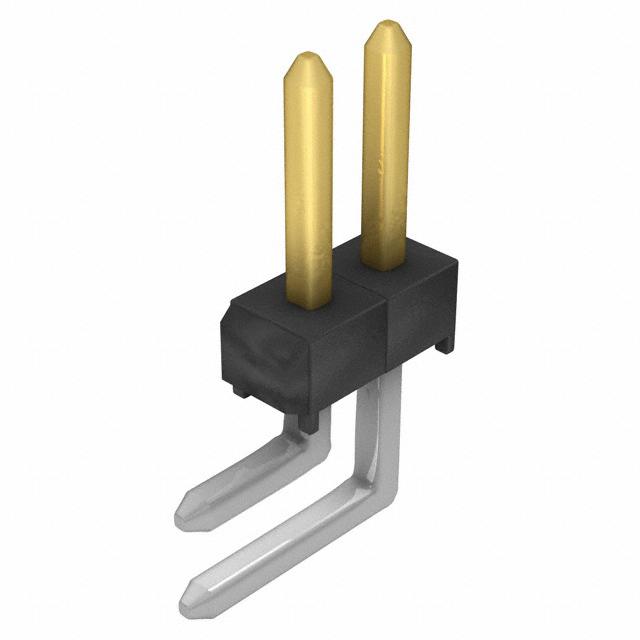

TSW-101-08-F-D-RA

SAMTEC TSW-101-08-F-D-RA Board-To-Board Connector, 2.54mm, 2Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔，直角 2 位置 -

得捷:
CONN HEADER R/A 2POS

欧时:
HEADER R/A 2POS 2 ROW

艾睿:
This unshrouded TSW-101-08-F-D-RA header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 450 VAC. It has a right angle body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. TSW-101-08-F-D-RA is housed in black polyester. This product is 2.54 mm long, 5.56 mm tall and 12.44 mm deep. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Unshrouded Header HDR 2 POS Solder RA Thru-Hole

Newark:
# SAMTEC  TSW-101-08-F-D-RA  Board-To-Board Connector, 2.54 mm, 2 Contacts, Header, TSW Series, Through Hole, 2 Rows
