TEXAS INSTRUMENTS TPS799XXEVM-105 评估模块, TPS799XXEVM-105

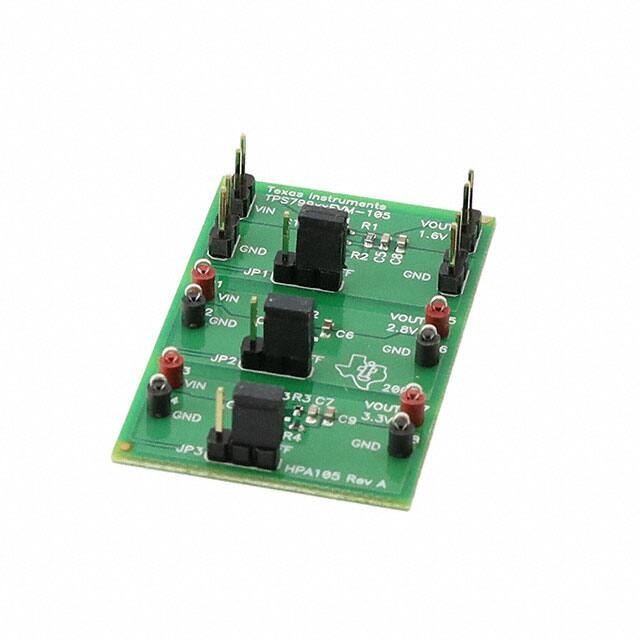

The is an evaluation module helps the designers to evaluate the operation and performance of the TPS799xx family of linear regulators. These regulators are low quiescent current, high PSRR, ultra low noise, low dropout linear regulators. This evaluation module contains three independent linear regulator DC/DC converters TPS79901YZU adjustable, WCSP, TPS79928YZU 2.8V output, WCSP and TPS79901DDC adjustable, SOT23. If desired, converters 1 and 3 on this evaluation module can be easily modified to supply higher or lower output voltages. The converter can be adjusted to provide an output voltage between 1.217V and 6.34V. Output voltages other than the default values may be evaluated by adjusting the appropriate feedback resistors. Also, other fixed output voltage versions of the devices can be easily evaluated using This evaluation module.
- .
- 200mA low dropout regulator with EN
- .
- Multiple output voltage versions available
- .
- 66dB at 1KHz high PSRR
- .
- 29.5µVRMS ultra low noise
- .
- Excellent load/line transient response
- .
- 2% overall accuracy Load/line/temp
- .
- 100mV very low dropout
- .
- 40mA Low IQ
It is important to operate this EVM within the input voltage range of 1.775V to 5.10V and the output voltage range of 1.60V to 3.30V. Exceeding the specified input range may cause damage to the EVM.
