TEXAS INSTRUMENTS TLV70433DBVEVM-712 评估模块, TLV70433DBVEVM-712

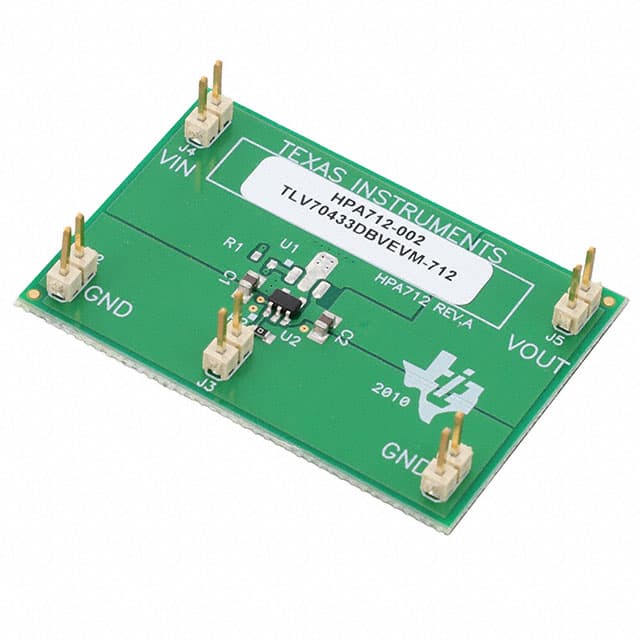

The is a fully assembled and tested circuit for evaluating the TLV70433 low dropout regulator in the DBV SOT23-5 package. The TLV70433 is a low dropout regulator, ultralow quiescent current device designed for extremely power sensitive applications. Quiescent current is virtually constant over the complete load current and ambient temperature range. These devices are an ideal power management attachment to low power microcontrollers, such as the MSP430. The TLV70433 operate over a wide operating input voltage of 2.5V to 24V. Thus, it is an excellent choice for both battery powered systems as well as industrial applications.
- .
- Wide input voltage range from 2.5V to 24V
- .
- Low 3.2uA quiescent current
- .
- Ground pin current from 3.4uA at 100mA Iout
- .
- Stable with any capacitor greater then 0.47uF
- .
- Available in SOT23-5 and SOT89 packages
- .
- Operating junction temperature from -40 to +125 degrees C
Its important to operate this EVM within the input range of -0.3V to 24V and the output range of 1.2V to 5V. Exceeding the specified input range may cause damage to the EVM.
