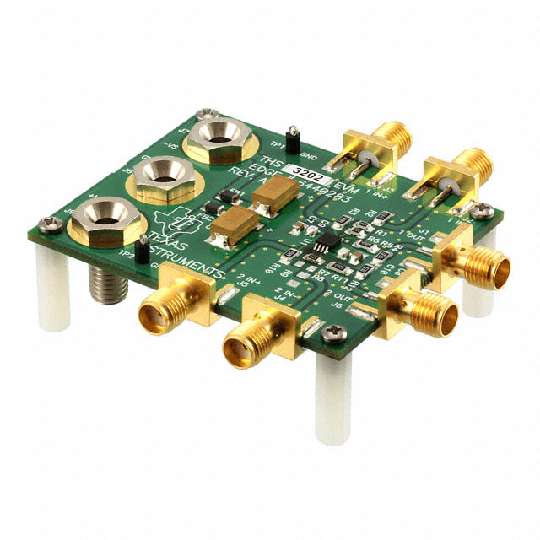

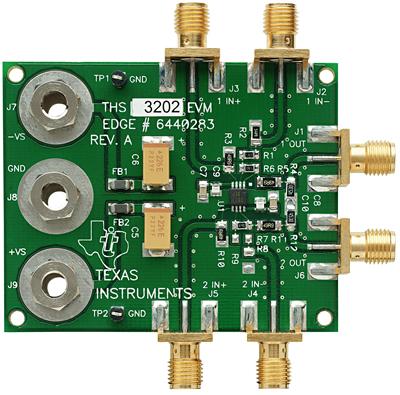

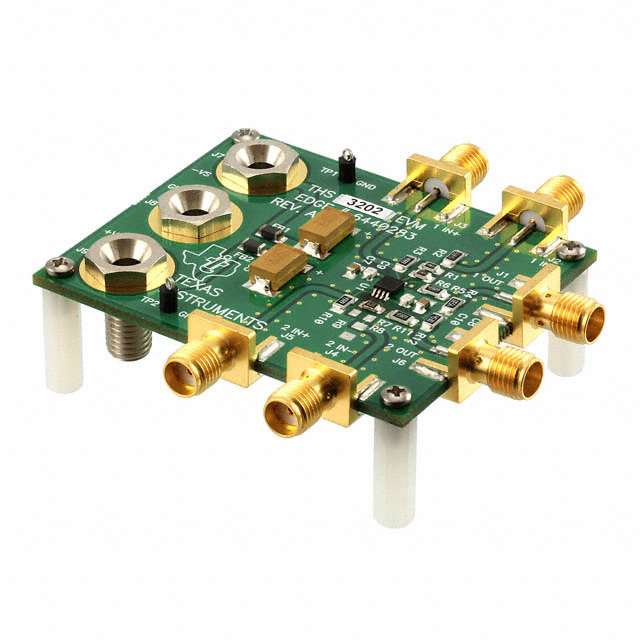

THS3202EVM概述
THS3202EVM提供开发双运放的平台,用户只需加载电源,输入信号和测试工具就可实现对运放的评估.可改变增益电阻进而改变增益
The is an evaluation module for THS3202, a dual current feedback amplifier developed with BiCOM-II technology. The THS3202 provides well regulated AC performance characteristics with power supplies ranging from single supply 6.6V operation up to a 15V supply. The high unity gain bandwidth of up to 2GHz is a major contributor to the excellent distortion performance. The THS3202 offers an output current drive of ±115mA and a low differential gain and phase error that make it suitable for applications such as video line drivers.
- .
- 6.6V to 15V power supply range
- .
- Power supply ripple rejection
- .
- Input impedance is 50W
- .
- Decoupling capacitors
- .
- Output load of 500W
- .
- Connections: Vs-, GND, Vs+, Vin1+, Vin1-, Vin2+, Vin2-, Vout1, Vout2, and testpoints
- .
- Input and output signals are via SMA connectors, and power connectors are via banana jack
