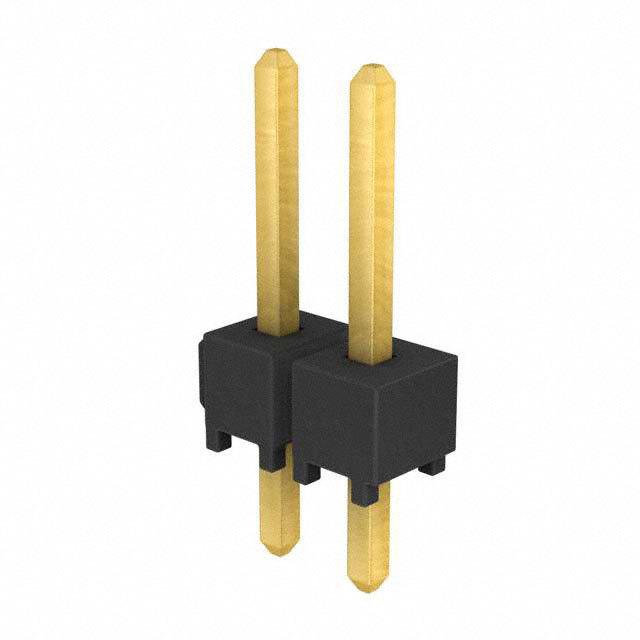

TSW-102-07-G-S

SAMTEC  TSW-102-07-G-S  板至板连接, 无护罩, TSW系列, 2 触点, 针座, 2.54 mm, 通孔安装, 1 排

The TSW series from are standard terminal strip headers. These are unshrouded through hole headers with 0.025" 0.635mm square post and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD and SMSS series of connectors.

.

Orderable with single/dual/triple rows -S/-D/-T/-Q option

.

Pitch spacing is 2.54mm 1 to 50 contacts per row with straight orientation

.

High operating temperature range of -55°C to 125°C for gold plated contacts

.

Terminal material is phosphor bronze

.

Black glass filled polyester insulator material

.

Complies with UL E111594 and CSA 090871_0_000 standards

.

Extended life product, high performance with optimized cost

.

Locking lead and locking clip feature is optional
