THS4271EVM概述

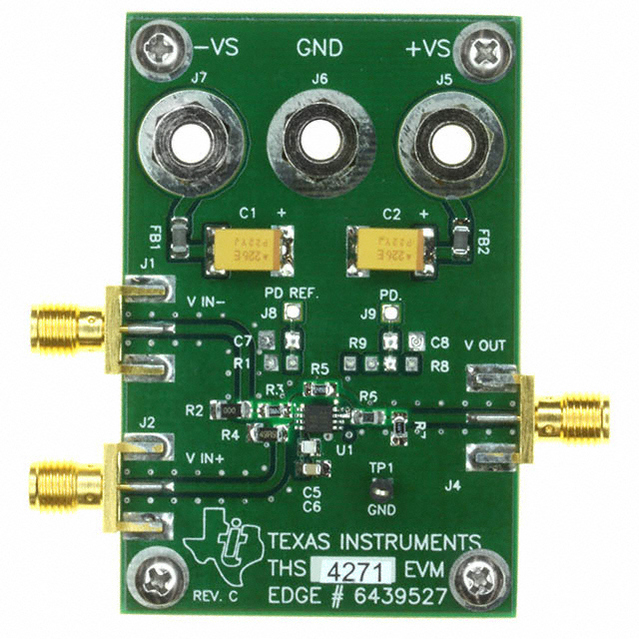

TEXAS INSTRUMENTS THS4271EVM 评估电路板, THS4271 运算放大器
The and THS4275EVM are designed to demonstrate the functionality and versatility of the device. There are three versions of the EVM: gains _>_+2/-1 with shutdown THS4275EVM, gains _>_+2/-1 without shutdown THS4271EVM, and noninverting unity gain configuration w/o shutdown THS4271EVM-UG. The EVM is ready for power, input signal, and test instruments. Gain is adjustable by changing the feedback and gain resistors.
