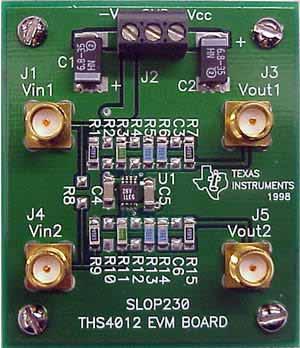

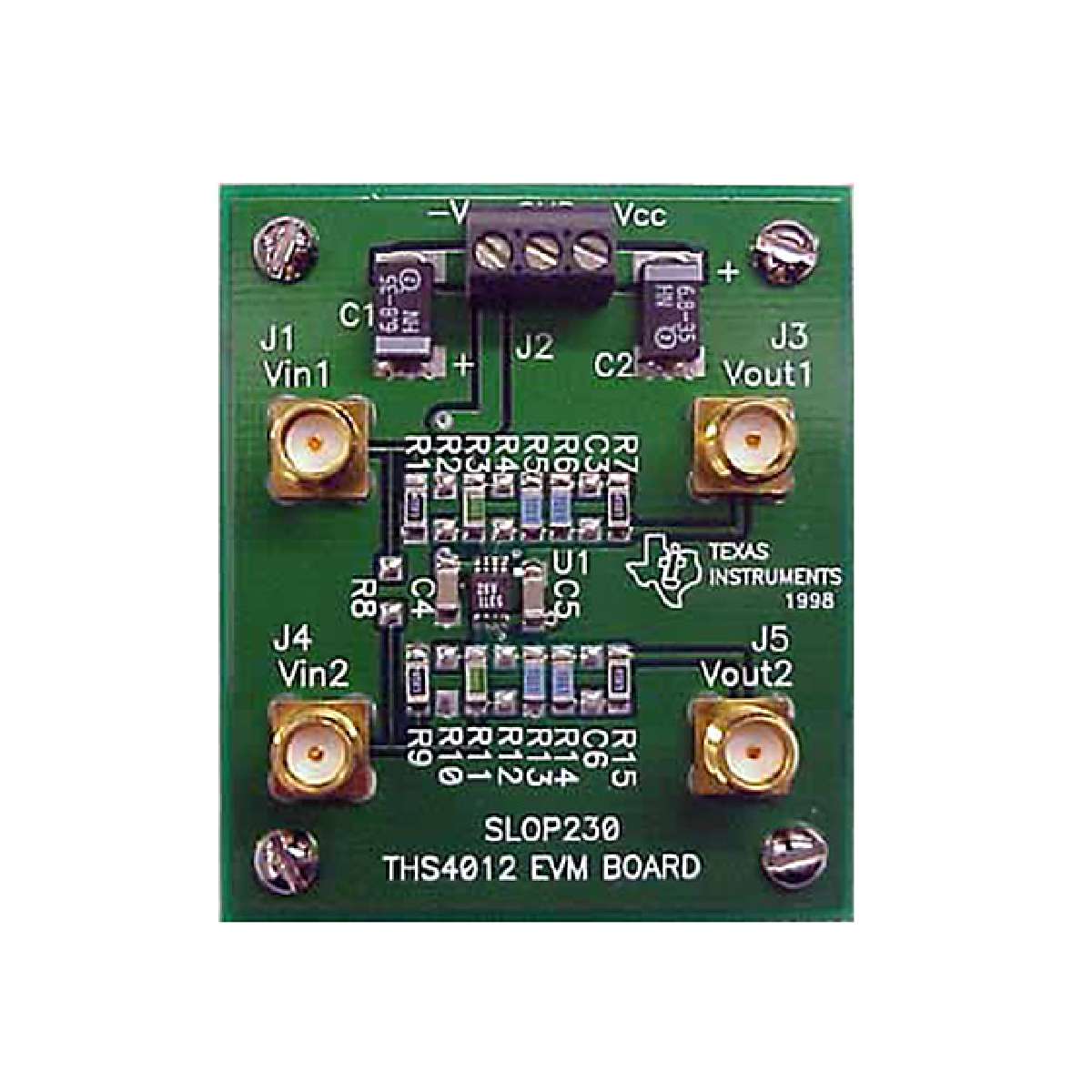

THS4012和一些其他元件组成,输入/输出采用标准化的小型RF连接器.
DESCRIPON
The THS4011 and THS4012 are high-speed, single/dual, voltage feedback amplifiers ideal for a wide range of applications. The devices offer good acperformance, with 290-MHz bandwidth, 310-V/ms
slew rate, and 37-ns settling time 0.1%. These amplifiers have a high output drive capability of 110
mA and draw only 7.8-mA supply current per channel. For applications requiring low distortion, the
THS4011/4012 operate with a total harmonic distortion THD of -80 dBc at f = 1 MHz. For video
applications, the THS4011/4012 offer 0.1-dB gain flatness to 70 MHz, 0.006% differential gain error,
and 0.01° differential phase error.
FEATURES
• High Speed
– 290-MHz Bandwidth G = 1, –3 dB
– 310-V/ms Slew Rate
– 37-ns Settling Time 0.1%
• Low Distortion
– THD = –80 dBc f = 1 MHz, RL = 150 Ω
• 110-mA Output Current Drive Typical
• 7.5-nV/√Hz Voltage Noise
• Excellent Video Performance
– 70-MHz Bandwidth 0.1 dB, G = 1
– 0.006% Differential Gain Error
– 0.01° Differential Phase Error
• ±5-V to ±15-V Supply Voltage
• Available in Standard SOIC, MSOP PowerPAD™, JG, or FK Packages
• Evaluation Module Available
