THS4120EVM概述
50欧姆电阻以实现线路的阻抗匹配

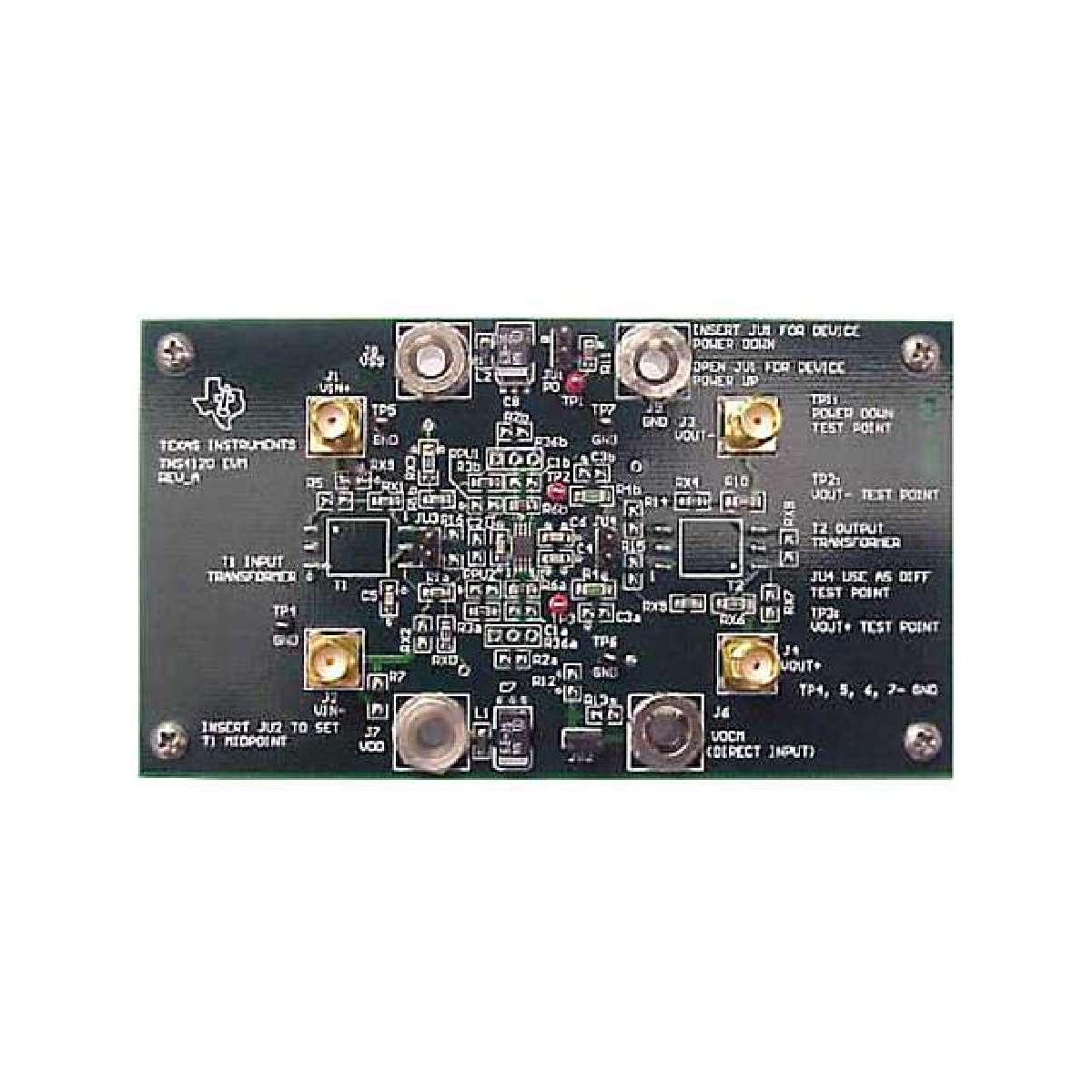

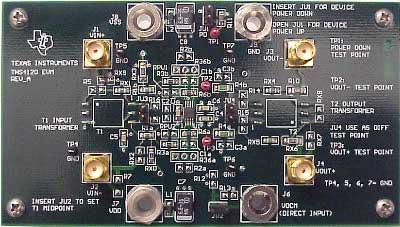

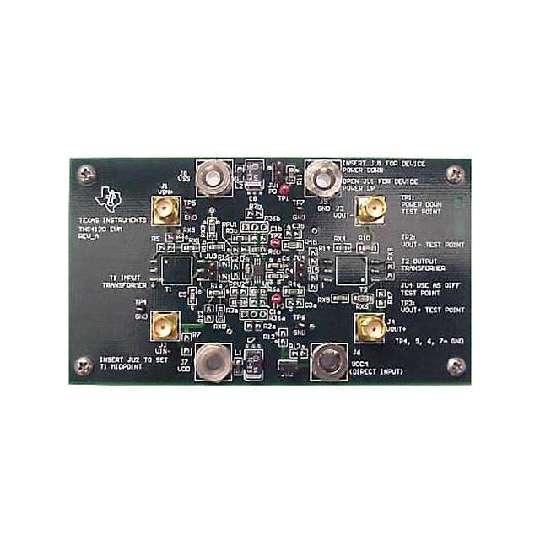

THS4120 Evaluation Board is a fully-populated board. The outputs Vo+ and Vo- can be tested differentially or single-ended. Gain is set to one, and can be changed by changing the ratios of the feedback and gain resistors. Each input is terminated with a 50 ohm resistor to provide correct line-impedance matching.
得捷:
EVAL MOD FOR THS4120
贸泽:
Amplifier IC Development Tools THS4120 Eval Mod
Chip1Stop:
THS4120 Evaluation Module
力源芯城:
支持单端和差分输入/输出,增益可通过反馈增益电阻来改变,每个输入端均接一个50欧姆电阻以实现线路的阻抗匹配
