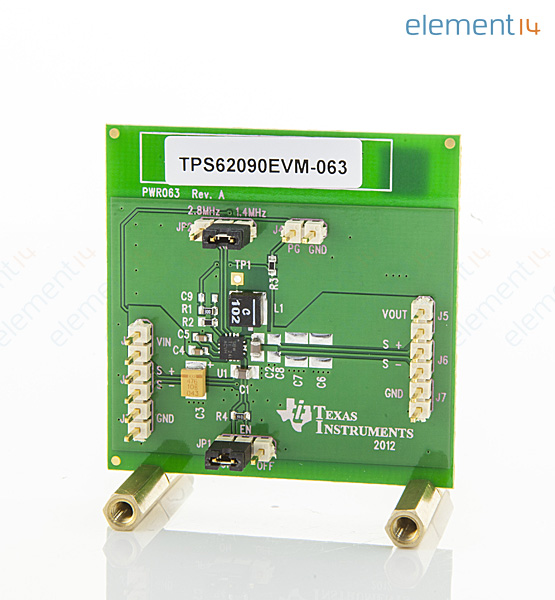

TPS62090EVM-063图片1

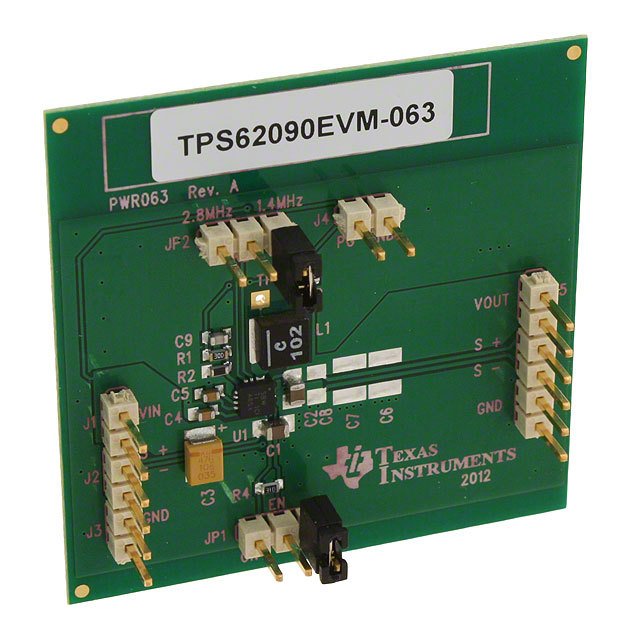

TPS62090EVM-063图片2
TPS62090EVM-063图片3
TPS62090EVM-063图片4
TPS62090EVM-063图片5
TPS62090EVM-063图片6
TPS62090EVM-063概述

TPS62090EVM -063评估模块 TPS62090EVM-063 Evaluation Module

is a fully assembled and tested circuit for evaluating the TPS62090. The TPS62090 is a step down converter that operates with an input voltage between 2.5V and 6Vdc, an output voltage of 1.8V using external resistors, and can deliver up to 3000mA of continuous current. The TPS62090 is a high frequency synchronous step down converter optimized for small solution size, high efficiency and is suitable for battery powered applications. To maximize efficiency, the converter operates in PWM mode with a nominal switching frequency of 2.8MHz/1.4MHz and automatically enters Power Save Mode operation at light load currents. When used in distributed power supplies and point of load regulation, the device allows voltage tracking to other voltage rails and tolerates capacitors ranging from 22µF up to 100µF. Using the DCS Control topology, the device achieves excellent load transient performance and accurate output voltage regulation.

.
2.5V to 6V input voltage range
.
95% converter efficiency
.
20µA operating quiescent current
.
100% duty cycle for lowest dropout
.
Fixed output voltage versions
.
Output discharge function
.
Wide output capacitance selection
.
Two level short circuit protection
.
0.8 V to VIN adjustable output voltage
.
DCS control
TPS62090EVM-063中文资料参数规格
技术参数

输出接口数 1

输出电压 1.8 V

输出电流 3 A

开关频率 1.4MHz, 2.8MHz

输入电压 2.5V ~ 6V

其他

产品生命周期 Unknown

包装方式 Bulk

制造应用 电源管理, 消费电子产品

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

REACH SVHC标准 No SVHC

数据手册

在线购买TPS62090EVM-063
型号: TPS62090EVM-063
制造商: TI 德州仪器
描述:TPS62090EVM -063评估模块 TPS62090EVM-063 Evaluation Module
