TPS43061EVM-198概述
TEXAS INSTRUMENTS TPS43061EVM-198. 评估模块, TPS43061, 同步升压控制器

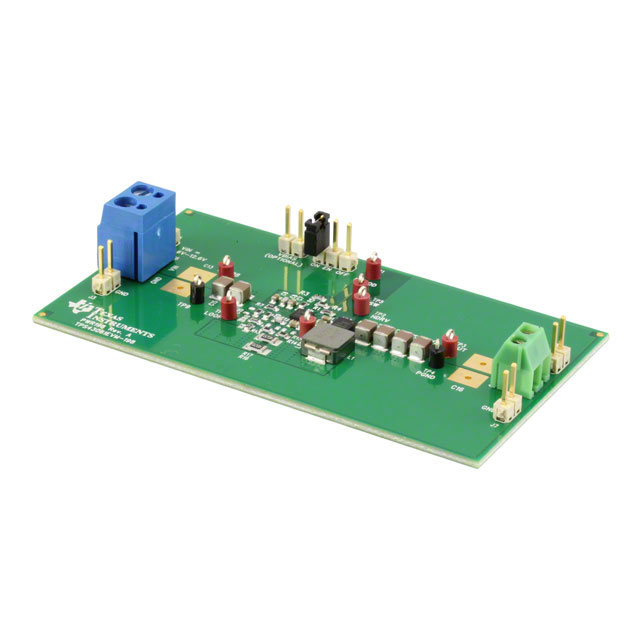

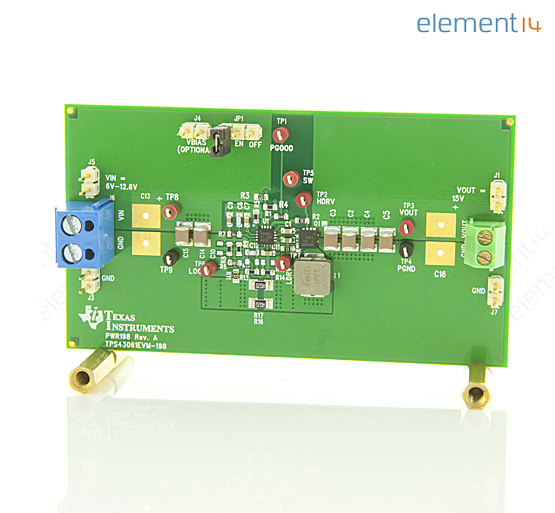

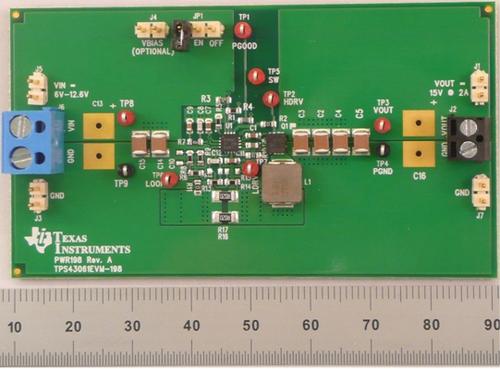

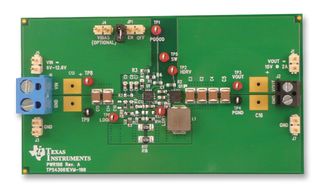

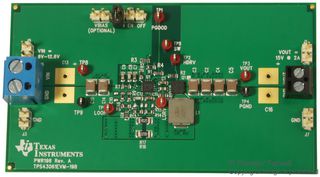

The evaluation module is a fully assembled and tested circuit for evaluating the TPS43061 Synchronous Boost DC-DC Controller. The EVM operates from a 6V to 12.6V input 9V nominal and provides a 15V output at 2A. This design uses the CSD86330Q3D synchronous power block for high efficiency and power density.
- .
- Integrated high-side and low-side gate drivers optimized for low Gate charge NexFET
- .
- 5 µA Shutdown Current
- .
- Adjustable 100 kHz to 1 MHz switching frequency with synchronization capability
- .
- Adjustable UVLO Voltage and Hysteresis
- .
- Adjustable Soft-Start time
- .
- Output voltage Power-Good indicator
- .
- Adjustable UVLO voltage and hysteresis
- .
- Adjustable soft start time
- .
- Output voltage power good indicator
