THS7372IPW

4通道视频放大器，一个CVBS和三全高清滤波器6 dB增益 4-Channel Video Amplifier with One CVBS and Three Full-HD Filters with 6-dB Gain

Fabricated using the revolutionary, complementary Silicon-Germanium SiGe BiCom3X process, the THS7372 is a low-power, single-supply, 2.7-V to 5-V, four-channel integrated video buffer. It incorporates one SDTV filter and three fixed Full-HD also known as True-HD HDTV filters. All filters feature sixth-order Butterworth characteristics that are useful as digital-to-analog converter DAC reconstruction filters or as analog-to-digital converter ADC anti-aliasing filters.

The THS7372 has flexible input coupling capabilities, and can be configured for either ac- or dc-coupled inputs. The 300-mV output level shift allows for a full sync dynamic range at the output with 0-V input. AC-coupled modes include a transparent sync-tip clamp for CVBS, Y’, and G’B’R’ signals. AC-coupled biasing for P’B/P’R channels can easily be achieved by adding an external resistor to VS+.

The THS7372 is an ideal choice for a wide range of video buffer applications. Its rail-to-rail output stage with 6-dB gain allows for both ac and dc line driving. The ability to drive two lines, or 75-Ω loads, allows for maximum flexibility as a video line driver. The 23.4-mA total quiescent current at 3.3 V and 0.1 µA disabled mode makes it well-suited for systems that must meet power-sensitive Energy Star® standards.

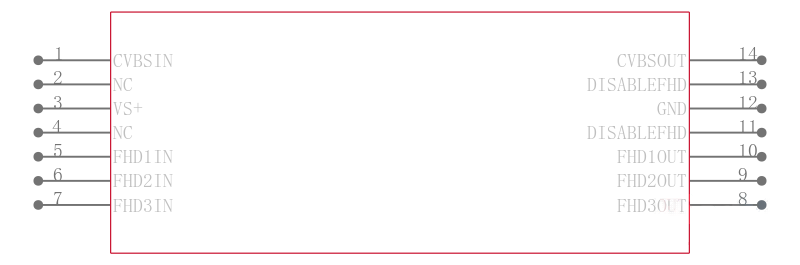

The THS7372 is available in a TSSOP-14 package that is lead-free and green RoHS-compliant.
