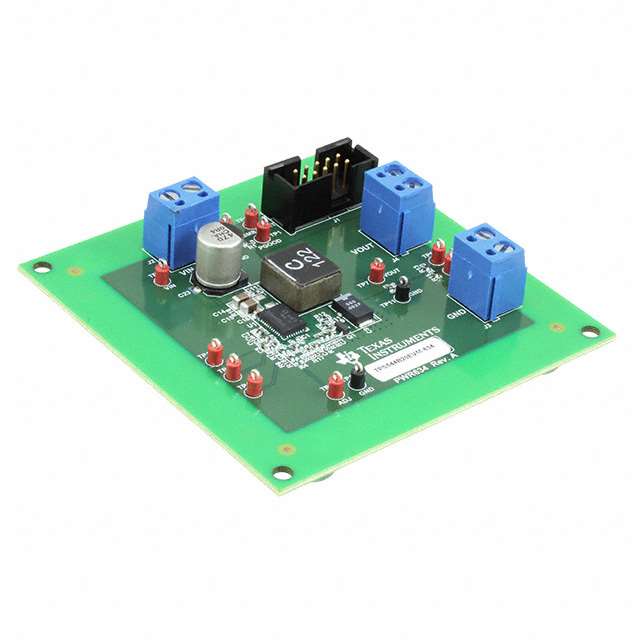

TPS544B20EVM-634

TPS544B20 DC to DC Converter and Switching Regulator Chip 1VDC Output Evaluation Board

The TPS544B20EVM evaluation module EVM allows users to evaluate the TPS544B20. The TPS544B20 is a D-CAP2™ mode, 20-A SWIFTTM converter with PMBusTM. It provides a fixed 1.2-V output at up to 20 A from a 12-V input bus. The TPS544B20EVM is designed to demonstrate the TPS544B20 in a typical, low-voltage application while providing a number of test points, including the PMBus connection to evaluate the performance of the TPS544B20.

.

*If a designer wants to communicate with this EVM from a Windows-based PC, a separate USB Interface Adapter EVM is required.** The USB-TO-GPIO Adapter serves as an interface adapter or a bridge between a host PC IBM compatible and one or multiple slave devices via a standard type-A to mini-B USB cable. The USB-TO-GPIO Adapter is listed below in the related products section.
