电源管理IC开发工具 SWIFT Converter Eval Mod

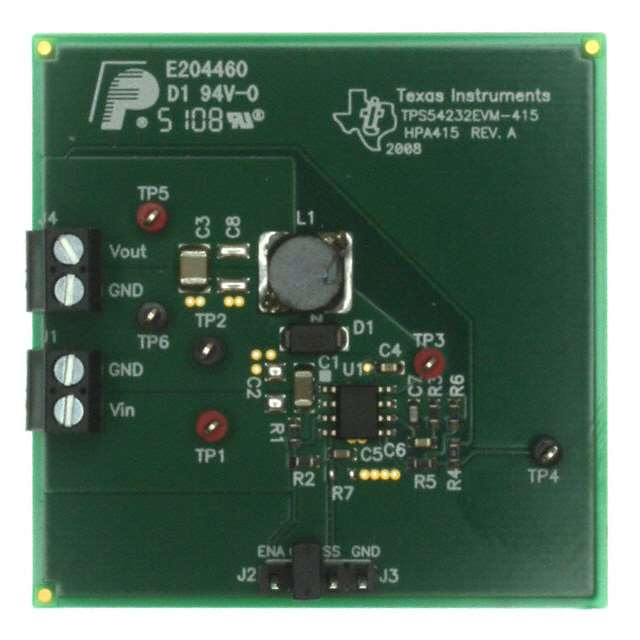

The is a TPS54232 15V Input, 2.5V Output, 2A evaluation module. This evaluation module is designed to demonstrate the small printed circuit board areas that may be achieved when designing with the TPS54232 regulator. The switching frequency is internally set at a nominal 1000KHz. The high Side MOSFET is incorporated inside the TPS54232 package along with the gate drive circuitry. The low drain-to-source on resistance of the MOSFET allows the TPS54232 to achieve high efficiencies and helps keep the junction temperature low at high output currents. The compensation components are external to the integrated circuit IC, and an external divider allows for an adjustable output voltage. Additionally, the TPS54232 provides adjustable slow start and undervoltage lockout inputs. The absolute maximum input voltage is 30V for the evaluation module.
