TPS51206EVM-745概述

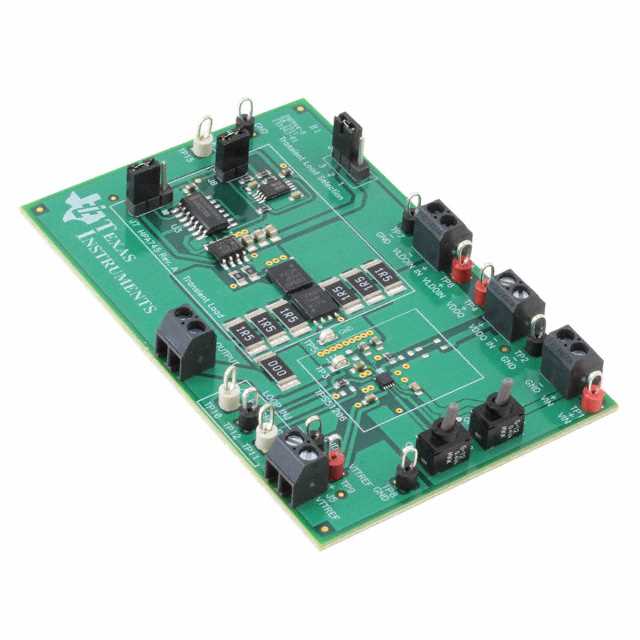

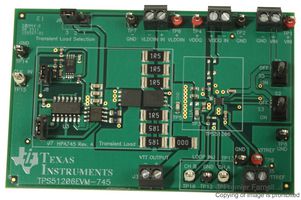

TEXAS INSTRUMENTS TPS51206EVM-745 评估模块, TPS51206EVM-745

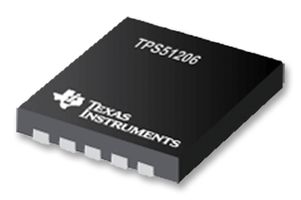

The is an evaluation module for TPS51206. The TPS51206 is a sink/source double data rate DDR termination regulator with VTTREF buffered reference output. It is specifically designed for low input voltage, low cost, low external component count systems where space is a key consideration. The evaluation module is designed to provide proper termination voltage and a 10mA buffered reference voltage for DDR memory which covers DDR2 0.9VTT, DDR3 0.75VTT, DDR3L 0.675VTT and DDR4 0.6VTT specifications with minimal external components.
- .
- VDD voltage: support 5V rail and 3.3V rail
- .
- VLDOIN, VDDQ voltage range: 1.2V to 1.8V
- .
- Build in, onboard transient load to emulate the sink/source transient behavior
- .
- Switch S1, S2 for S3 and S5 Enable function
- .
- Convenient test points for probing VTT, VTTREF, CLK_IN and loop response testing
- .

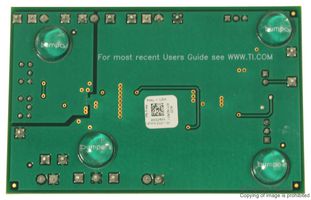

- Four layer, printed circuit board PCB with all the components on the bottom side
