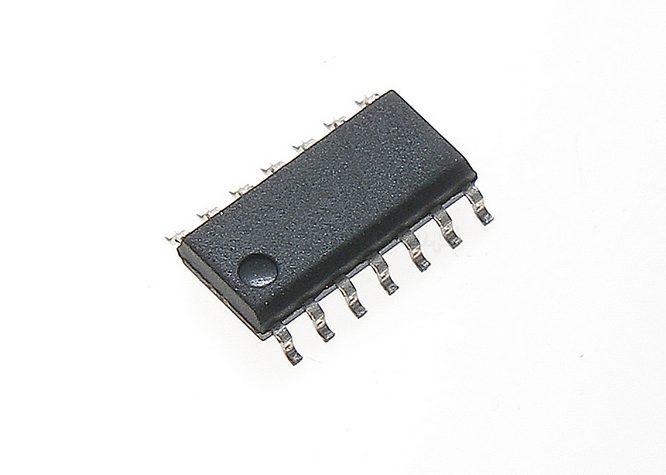

TEXAS INSTRUMENTS TL074CPWR 运算放大器, 四路, 3 MHz, 4个放大器, 13 V/µs, 7V 至 36V, TSSOP, 14 引脚
The is a quad low-noise JFET-input general-purpose Operational Amplifier incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low-input bias and offset currents and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL07xseries ideally suited for high-fidelity applications.
供电电流 1.4 mA
电路数 4
通道数 4
针脚数 14
共模抑制比 70 dB
输入补偿漂移 18.0 µV/K
带宽 3 MHz
转换速率 13.0 V/μs
增益频宽积 3 MHz
输入补偿电压 3 mV
输入偏置电流 65 pA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 3 MHz
共模抑制比Min 70 dB
电源电压 7V ~ 36V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
高度 1.05 mm
封装 TSSOP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 替代能源, 工业, 信号处理, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL074CPWR TI 德州仪器 | 当前型号 | 当前型号 |
TL074CPWE4 德州仪器 | 完全替代 | TL074CPWR和TL074CPWE4的区别 |
TL074CPW 德州仪器 | 类似代替 | TL074CPWR和TL074CPW的区别 |
TL074CPWRG4 德州仪器 | 类似代替 | TL074CPWR和TL074CPWRG4的区别 |
