KIT DEV FINGERPRINT C5515

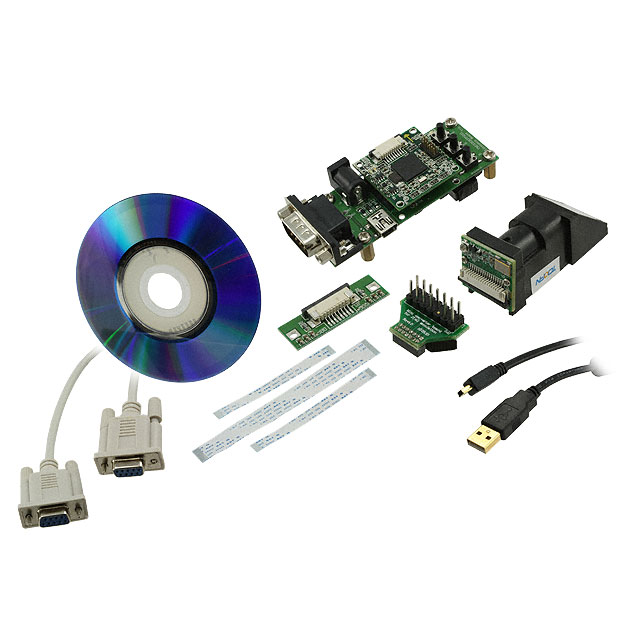

The is a C5515 based fingerprint development Kit, a complete signal chain solution to enable manufacturers and developers, who are interested in integrating fingerprint biometrics features into their product, to go to market faster. The kit contains two widely used sensor types one swipe sensor and one optical sensor, one core board with ultra low power TMS320C5515 digital signal processor and one extension board for user interaction. In addition, we provide complete hardware design collaterals, simplified application source code and technical documentations, like user guide, application notes, to help users understand how to develop a fingerprint application from beginning. A production quality demo binary file is included in this kit to enable users to experience the final product performance. Some target applications includes physical access control products, USB smart keys and storage device, PC user identification, time and attendance monitoring systems and more.
- .
- TMDXBDKFP5515 uses 16bit fixed point TMS320C5515 DSP for low energy consumption
- .
- Small form factor kit contains core board, extension board and user interfaces
- .
- Extension board is 78mmx30mm to provide power, communication scheme and user interfaces
- .
- LEDs, push buttons, voice commands and audible feedback provide user interaction
- .
- Auto detect of sensor to load the corresponding demo for the particular sensor
- .
- Efficient fingerprint matching algorithm and optimized code for short matching time & high accuracy
- .
- C5515 has 320KB large on chip memory and high speed USB2.0 integration
- .
- Code Composer Studio CCS debugging through On board XDS100 JTAG emulation
- .
- Communication through high speed USB2.0 slave port or UART over debug USB port
- .
- Cost effective and high quality
