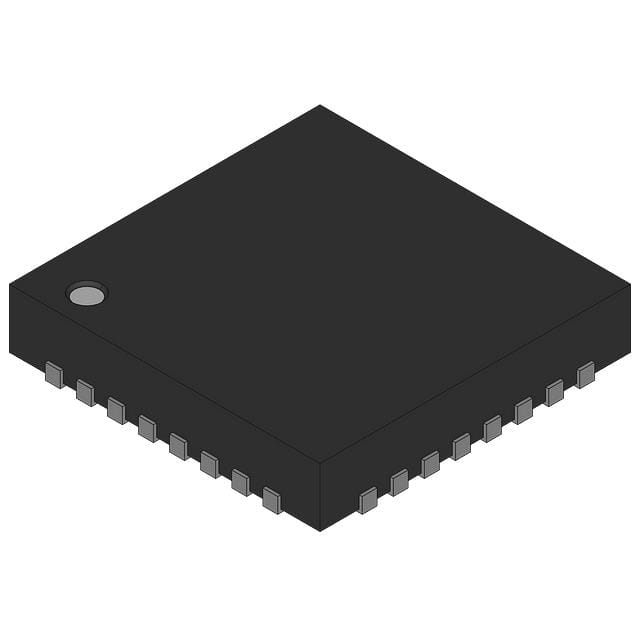

TLK106RHBT

工业温度，单端口 10/100Mbs 以太网物理层收发器 32-VQFN 0 to 0

The is a single-port Ethernet Physical-layer Transceiver for 10Base-T and 100Base-TX signalling. This device integrates all the physical-layer functions needed to transmit and receive data on standard twisted-pair cables. The TLK10x supports the standard Media Independent Interface MII and Reduced Media Independent Interface RMII for direct connection to a Media Access Controller MAC. The TLK10x is designed for power-supply flexibility and can operate with a single 3.3V power supply or with combinations of 3.3V and 1.55V power supplies for reduced power operation. The TLK10x uses mixed-signal processing to perform equalization, data recovery and error correction to achieve robust operation over CAT 5 twisted-pair wiring. This device not only meets the requirements of IEEE 802.3, but maintains high margins in terms of cross-talk and alien noise. The TLK10x Ethernet PHY has a special Power Back Off mode to conserve power in systems with relatively short cables.

.

Low power consumption

.

Programmable power back off to reduce PHY

.

Power up to 20% in systems with shorter cables

.

Energy detection mode

.

Error-free 100Base-T operation up to 150m under typical conditions

.

Error-free 10Base-T operation up to 300m under typical conditions

.

Physical sub-layer with adaptive equalization and baseline wander compensation

.

Programmable LED support link, activity

.

Green product and no Sb/Br
