PCM编解码器 PCM CODEC
The PCM codec is designed to perform transmit encoding analog/digital A/D conversion, receive decoding digital/analog D/A conversion, and transmit and receive filtering for voice-band communications systems. The device operates in either the 15-bit linear or 8-bit companded u-law or A-Law mode, which is selectable through the I2C interface. The PCM codec generates its own internal clocks from a 2.048-MHz master clock input.
得捷:
IC PCM CODEC 2.7V 80-BGA
贸泽:
Interface - CODECs 9-Bit 4-Port Univ Bus Exchg W/3-St Otp
艾睿:
Audio Codec 1ADC / 1DAC 15bit 80-Pin BGA MICROSTAR JUNIOR T/R
Chip1Stop:
Audio Codec 1ADC / 1DAC 15bit 80-Pin BGA MICROSTAR JUNIOR T/R
Verical:
Audio Codec 1ADC / 1DAC 15bit 80-Pin BGA MICROSTAR JUNIOR T/R
Win Source:
PCM Interface 15 b PCM Audio Interface 80-BGA MICROSTAR JUNIOR 5x5
通道数 2
位数 15
耗散功率 680 mW
采样率 8 KSPS
功耗 16.0 mW
静态电流 6.00 mA
输出功率 16 mW
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 680 mW
数模转换数DAC 1
电源电压Max 3.3 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 80

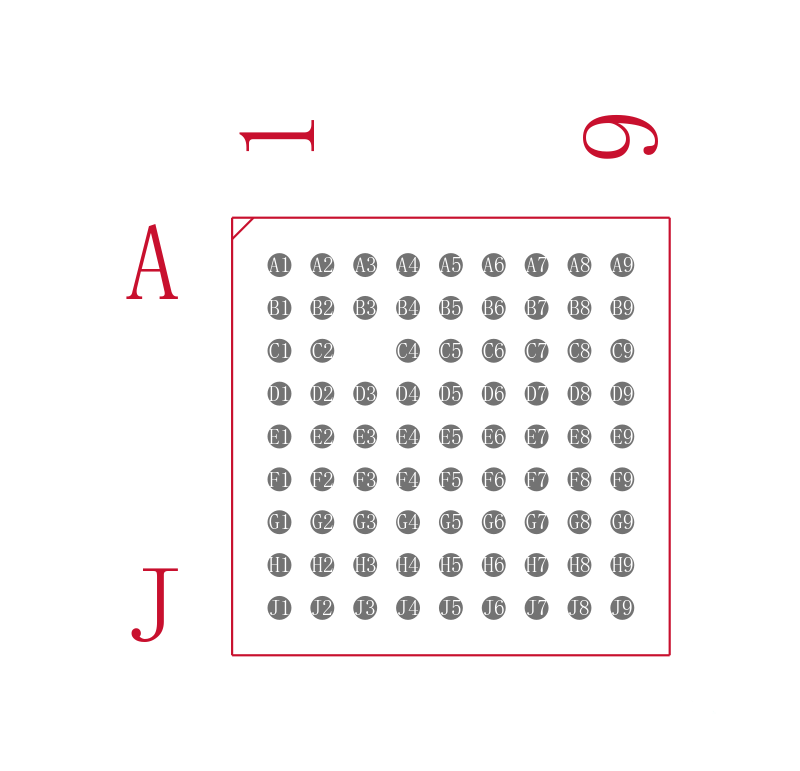

封装 BGA-80
长度 5 mm
宽度 5 mm
高度 0.74 mm
封装 BGA-80
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV320AIC1103ZQER TI 德州仪器 | 当前型号 | 当前型号 |
TLV320AIC1103GQER 德州仪器 | 类似代替 | TLV320AIC1103ZQER和TLV320AIC1103GQER的区别 |
TLV320AIC1110ZQER 德州仪器 | 类似代替 | TLV320AIC1103ZQER和TLV320AIC1110ZQER的区别 |
