带有集成耳机,扬声器放大器和触摸屏控制器音频编解码器 AUDIO CODEC WITH INTEGRATED HEADPHONE, SPEAKER AMPLIFIER AND TOUCH SCREEN CONTROLLER
The TSC2101 is a low-power highly integrated high performance codec and touch screen controller, which supports stereo audio DAC, monaural voice ADC and SAR ADC.
The TSC2101 features a high-performance audio codec with 16, 20, 24, or 32-bit stereo playback, mono record functionality at up to 48 ksps. The device integrates several analog features such as support for headset interface, cellular headset interface, microphone interface, and speaker and receiver drivers. The device supports auto detection of headset and button press without any glue logic. The TCS2101 has fully programmable audio. The digital audio data format is programmable to work with popular audio standard protocols I2S, DSP, left/right justified in master or slave mode, and also includes an on-chip PLL for flexible clock generation capability.
The TSC2101 contains a 12-bit 4-wire resistive touch screen converter complete with drivers, and interfaces to the host controller through a standard SPI serial interface. The on-chip processor provides extensive features specifically designed to reduce host processor and bus overhead, with capabilities that include fully automated operating modes, programmable conversion resolution up to 12 bits, programmable sampling rates up to 125 kHz, programmable conversion averaging, and programmable on-chip timing generation.
The TSC2101 offers battery measurement inputs capable of reading battery voltages up to 6 V, while operating at only 3 V. It also has an on-chip temperature sensor capable of reading 0.3°C resolution. The TSC2101 is available in a 48-lead QFN.
电源电压DC 2.70V min
供电电流 82 µA
通道数 1
位数 12
采样率 125 KSPS
模数转换数ADC 2
工作温度Max 85 ℃
工作温度Min -40 ℃
数模转换数DAC 2
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 48

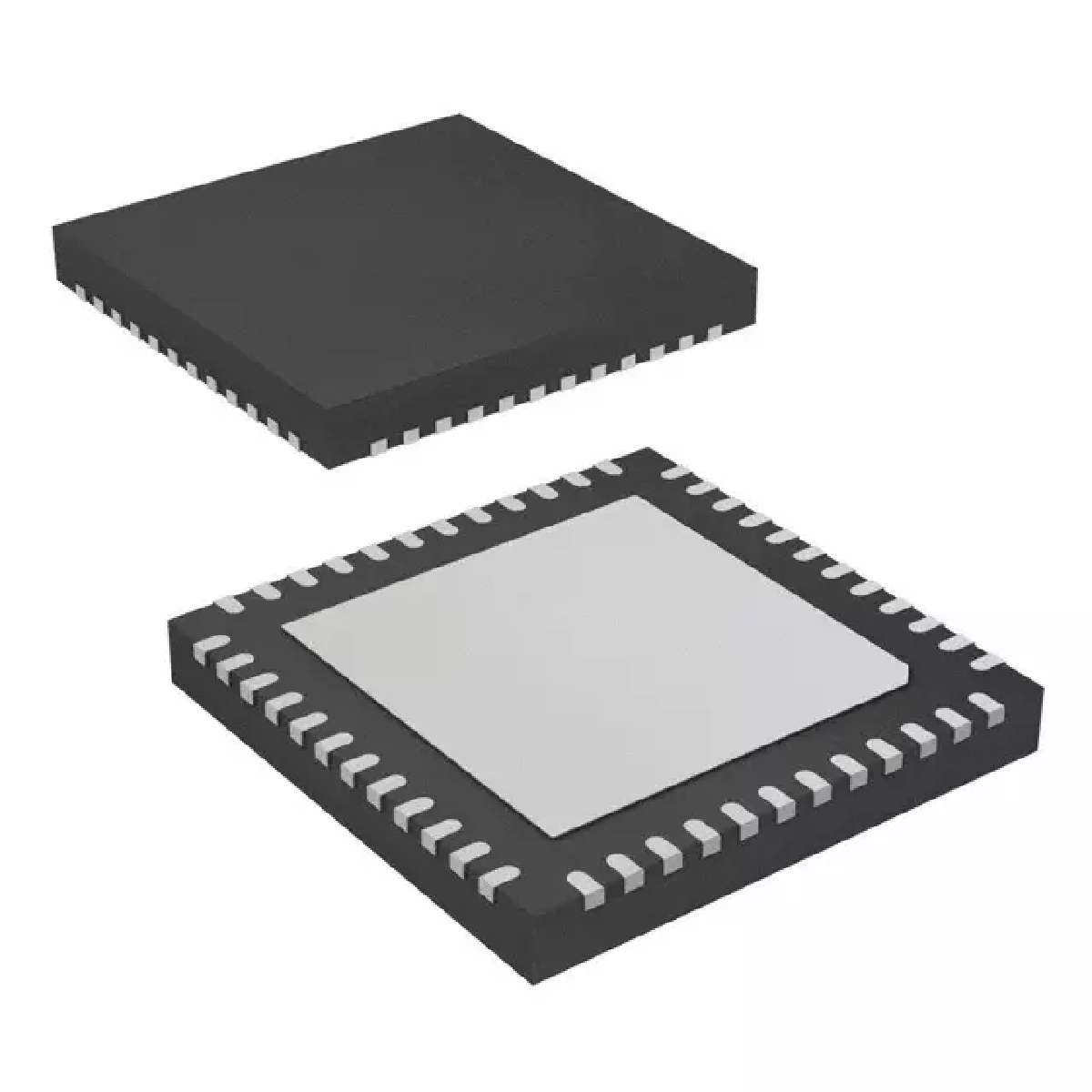

封装 VQFN-48
宽度 7 mm
封装 VQFN-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TSC2101IRGZ TI 德州仪器 | 当前型号 | 当前型号 |
TSC2101IRGZR 德州仪器 | 完全替代 | TSC2101IRGZ和TSC2101IRGZR的区别 |
