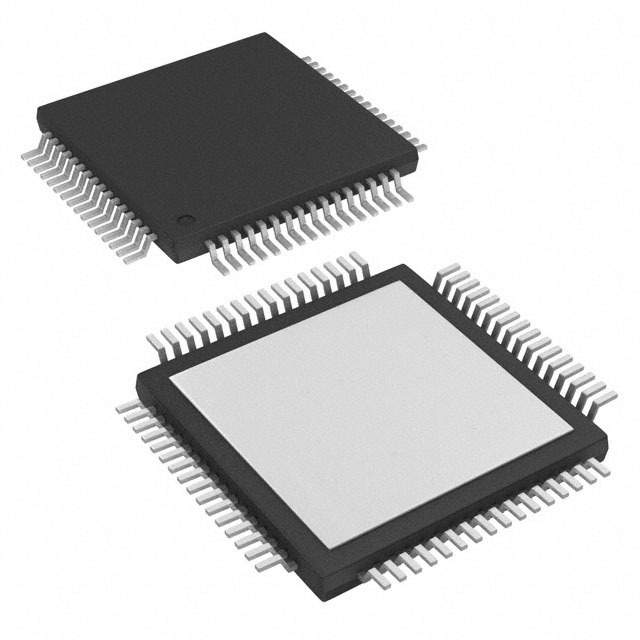

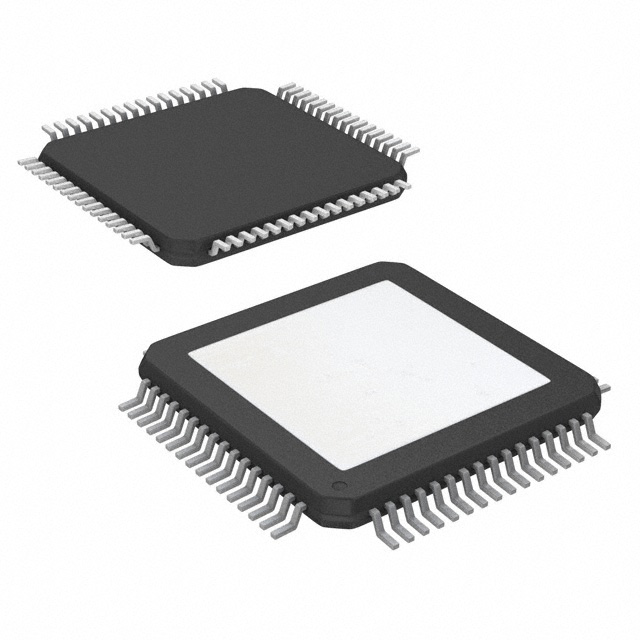

TLK1211RCP

以太网收发器 ETHERNET TRANSCEIVERS

* 0.6-Gbps to 1.3-Gbps Serializer/Deserializer * Low Power Consumption * Fast Relock Times Less Than 256 ns Typ Suitable for EPON/GEPON Applications * LVPECL Compatible Differential I/O on High Speed Interface * Single Monolithic PLL Design * Support For 10-Bit Interface or Reduced Interface 5-Bit DDR Double Data Rate Clocking * Receiver Differential Input Thresholds 200 mV Minimum * IEEE 802.3 Gigabit Ethernet Compliant * ANSI X3.230-1994 FC-PH Fibre Channel Compliant * Advanced 0.25-µm CMOS Technology * No External Filter Capacitors Required * Comprehensive Suite of Built-In Testability * IEEE 1149.1 JTAG Support * 2.5-V Supply Voltage for Lowest Power Operation * 3.3-V Tolerant on LVTTL Inputs * Hot Plug Protection * 64-Pin VQFP With Thermally Enhanced Package PowerPAD * CPRI Data Rate Compatible 614 Mbps, 1.22 Gbps * Industrial Temperature Range Supported: –40°C to 85°C
