TLV2770IDGKR

家庭2.7 -V高转换率轨至轨输出运算放大器，带有关断 FAMILY OF 2.7-V HIGH-SLEW-RATE RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS WITH SHUTDOWN

description

The TLV277x CMOS operational amplifier family combines high slew rate and bandwidth, rail-to-rail output swing, high output drive, and excellent dc precision. The device provides 10.5 V/µs of slew rate and 5.1 MHz of bandwidth while only consuming 1 mA of supply current per channel. This ac performance is much higher than current competitive CMOS amplifiers. The rail-to-rail output swing and high output drive make these devices a good choice for driving the analog input or reference of analog-to-digital converters. These devices also have low distortion while driving a 600-Ωload for use in telecom systems.

High Slew Rate. . . 10.5 V/µs Typ

High-Gain Bandwidth. . . 5.1 MHz Typ

Supply Voltage Range 2.5 V to 5.5 V

Rail-to-Rail Output

360 µV Input Offset Voltage

Low Distortion Driving 600-Ω 0.005% THD+N

1 mA Supply Current Per Channel

2 pA Input Bias Current

Characterized From TA= −55°C to 125°C

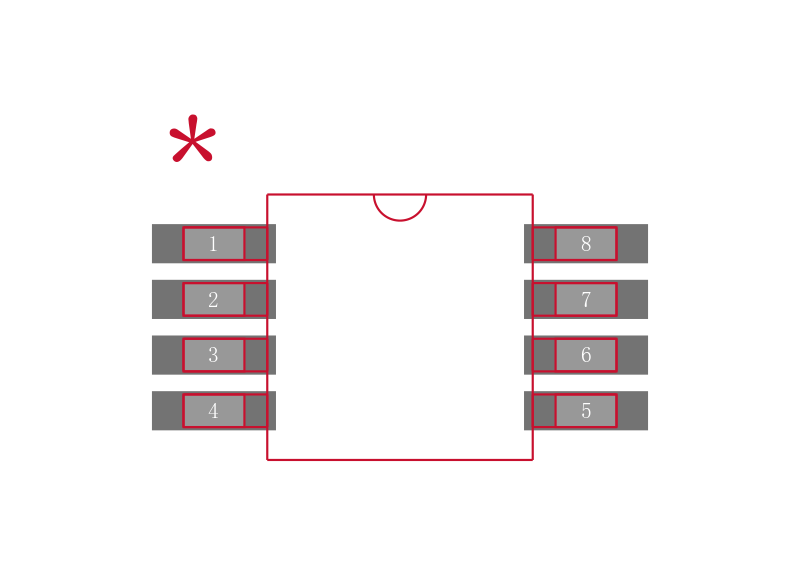

Available in MSOP and SOT-23 Packages

Micropower Shutdown Mode...IDD< 1 µA

Available in Q-Temp Automotive

   High Reliability Automotive Applications

   Configuration Control / Print Support

   Qualification to Automotive Standards

17 nV/√HzInput Noise Voltage
