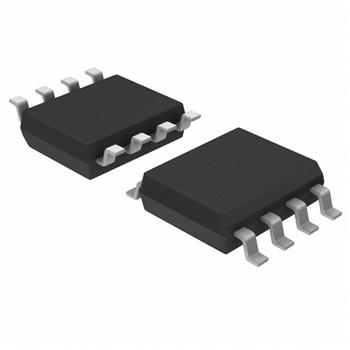

TLC2252AID

TEXAS INSTRUMENTS  TLC2252AID  芯片, 运算放大器

description

The TLC2252 and TLC2254 are dual and quadruple operational amplifiers from Texas Instruments. Both devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The TLC225x family consumes only 35 µA of supply current per channel. This micropower operation makes them good choices for battery-powered applications. The noise performance has been

dramatically improved over previous generations of CMOS amplifiers. Looking at Figure 1, the TLC225x has a noise level of 19 nV/√Hzat 1kHz; four times lower than competitive micropower solutions.

Output Swing Includes Both Supply Rails

Low Noise. . . 19 nV/√HzTyp at f = 1 kHz

Low Input Bias Current...1 pA Typ

Fully Specified for Both Single-Supply and Split-Supply Operation

Very Low Power...35 µA Per Channel Typ

Common-Mode Input Voltage Range Includes Negative Rail

Low Input Offset Voltage 850 µV Max at TA= 25°C TLC225xA

Macromodel Included

Performance Upgrades for the TS27L2/L4 and TLC27L2/L4

Available in Q–Temp Automotive

  HighRel Automotive Applications

  Configuration Control / Print Support

  Qualification to Automotive Standards
