EXCALIBUR低噪声高速JFET输入运算放大器 EXCALIBUR LOW-NOISE HIGH-SPEED JFET-INPUT OPERATIONAL AMPLIFIERS
description
The TLE207x series of JFET-input operational amplifiers more than double the bandwidth and triple the slew rate of the TL07x and TL08x families of BiFET operational amplifiers. Texas Instruments Excalibur process yields a typical noise floor of 11.6 nV/√Hz, 17-nV/√Hzensured maximum, offering immediate improvement in noise-sensitive circuits designed using the TL07x. The TLE207x also has wider supply voltage rails, increasing the dynamic signal range for BiFET circuits to ±19 V. On-chip zener trimming of offset voltage yields precision grades for greater accuracy in dc-coupled applications.
Direct Upgrades to TL05x, TL07x, and TL08x BiFET Operational Amplifiers
Greater Than 2×Bandwidth 10 MHz and 3×Slew Rate 45 V/μs Than TL07x
Ensured Maximum Noise Floor 17 nV/√Hz
On-Chip Offset Voltage Trimming for Improved DC Performance
Wider Supply Rails Increase Dynamic Signal Range to ±19 V
输出电流 ≤80 mA
供电电流 6.5 mA
电路数 4
通道数 4
共模抑制比 70 dB
输入补偿漂移 10.1 µV/K
带宽 9.40 MHz
转换速率 40.0 V/μs
增益频宽积 9.4 MHz
输入补偿电压 5 mV
输入偏置电流 0.175 nA
工作温度Max 85 ℃
工作温度Min 40 ℃
共模抑制比Min 70 dB
电源电压Max 19 V
电源电压Min 2.25 V
安装方式 Surface Mount

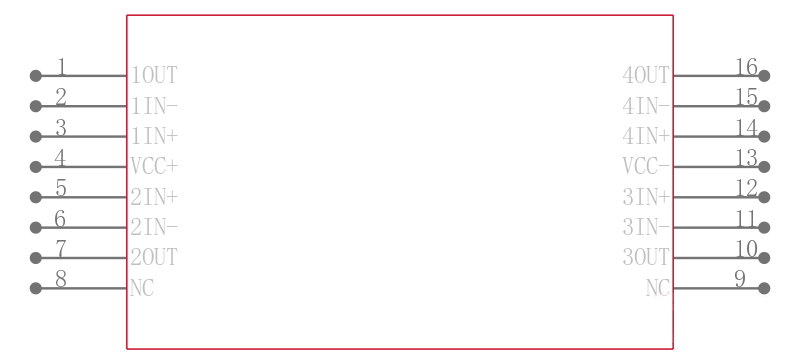

引脚数 16
封装 SOIC-16
长度 10.28 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
