TMDXEVMPCI概述
TEXAS INSTRUMENTS TMDXEVMPCI 适配器, AMC卡至PCIE

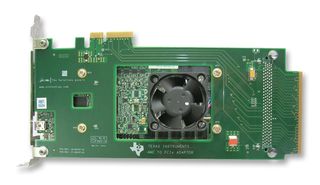

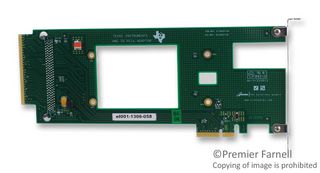

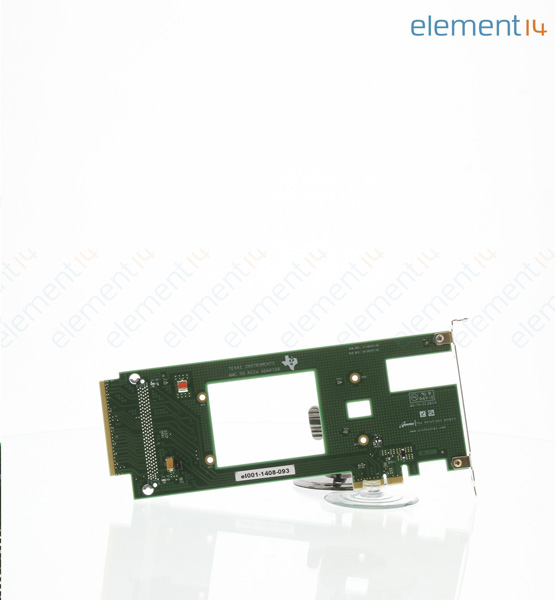

The is a passive adapter card that allows select evaluation modules with a AMC header to be converted to a PCIe x4 lane edge connector so it can be inserted into a desktop PC or any where a PCIe header is utilized. The selected evaluation module must support native PCIe on the DSP. This card is a adapter and requires a compatible DSP evaluation module with AMC edge connector.
- .
- The adaptor card is a PCIe x4 lane form factor
- .
- One x4 lane PCIe PCB edge finger connector
- .
- One AMC B+ style 170pin PCB edge finger connector
- .
- One AMC B+ style connector housing AMC Socket to hold the EVM
- .
- Connector to provide DC power to the fan
- .
- 12VDC from x4 lane PCIe edge fingers when inserted in ATX motherboard
- .
- 12VDC from AMC carrier back plane
