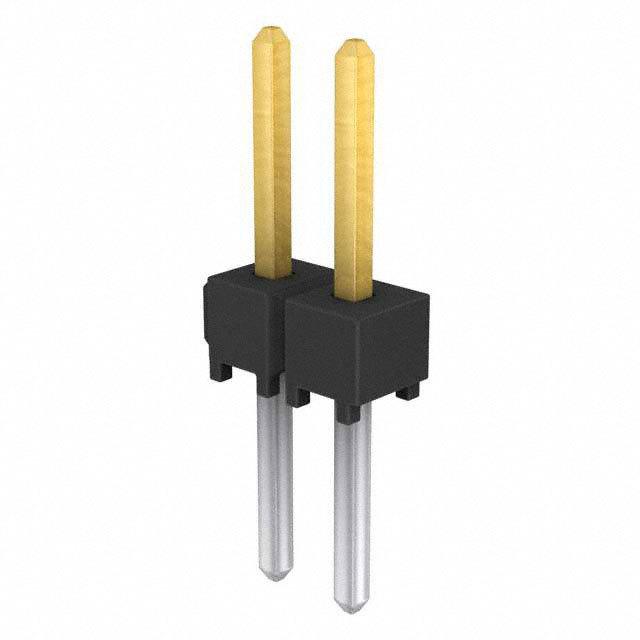

TSW-102-08-S-S

Board Connector, 2Contacts, 1 Rows, Male, Straight, 0.1inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

Connector Header Through Hole 2 position 0.100" 2.54mm

欧时:
2.54mm TSW series PCB pin header, 2P

得捷:
CONN HEADER VERT 2POS 2.54MM

艾睿:
Mount this unshrouded TSW-102-08-S-S header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a header type gender. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. TSW-102-08-S-S is housed in black polyester. It uses the solder termination method. This product is 5.08 mm long, 8.38 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 125 °C.

Newark:
# SAMTEC  TSW-102-08-S-S  .025 Sq. Terminal Strips

Electro Sonic:
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag
