TSW-101-06-T-D

方针

针座 通孔 2 位置 -

得捷:
CONN HEADER VERT 2POS

立创商城:
方针

艾睿:

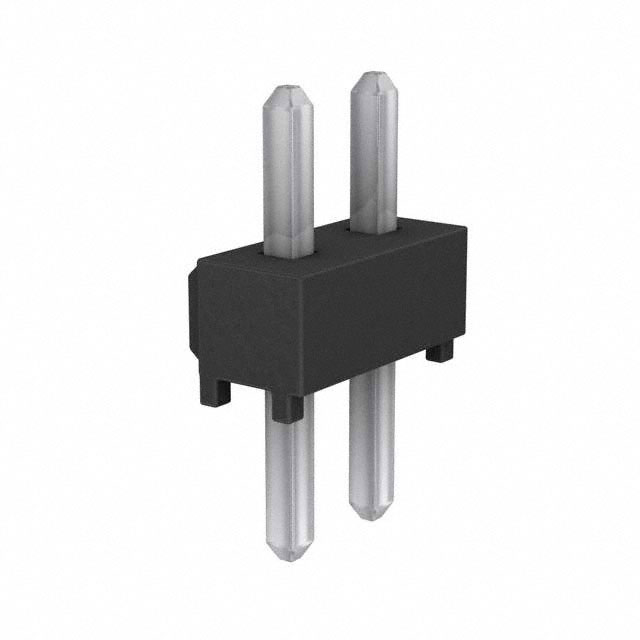

Mounting this unshrouded TSW-101-06-T-D header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 550 VAC. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 2.54 mm long, 5.21 mm tall and 5.08 mm deep. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. TSW-101-06-T-D is housed in black polyester.

Newark:
# SAMTEC  TSW-101-06-T-D  Board-To-Board Connector, 2.54 mm, 2 Contacts, Header, TSW Series, Through Hole, 2 Rows
