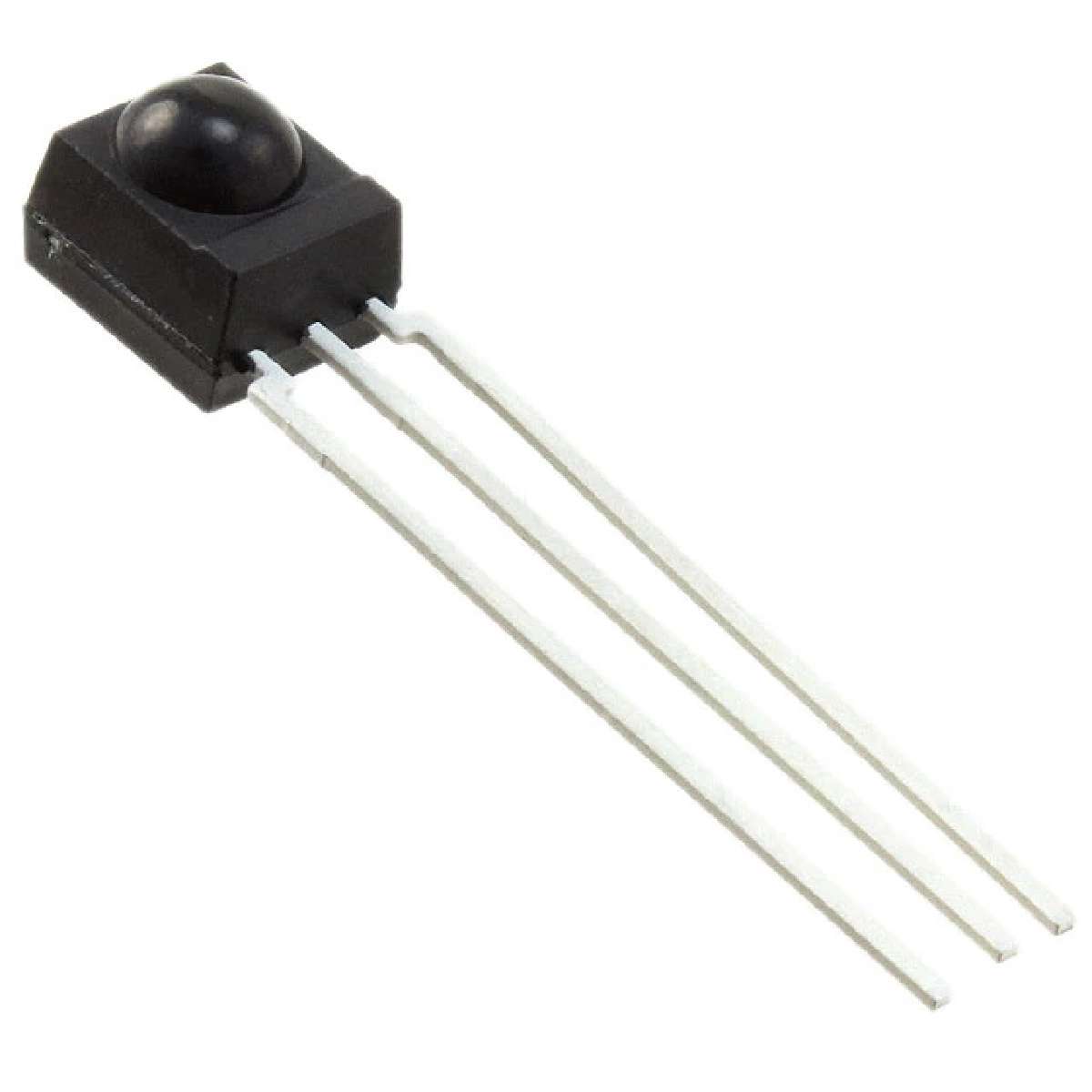

38 kHz 45 m 2.5-5.5 V 通孔 IR 接收器 模块 用于远程控制系统
The is a 38kHz Miniaturized IR Receiver Module for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame. The demodulated output signal can be directly connected to a microprocessor for decoding. The IR receiver module is optimized to suppress almost all spurious pulses from energy saving lamps like CFLs.
- .
- Very low supply current
- .
- Internal filter for PCM frequency
- .
- Improved shielding against EMI
- .
- Improved immunity against ambient light
- .
- Insensitive to supply voltage ripple and noise
电源电压DC 2.50V min
输出电流 5 mA
供电电流 350 µA
视角 90°
耗散功率 10 mW
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Through Hole
引脚数 3
封装 Side Looker
长度 6 mm
宽度 5.6 mm
高度 6.95 mm
封装 Side Looker
工作温度 -25℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Each
制造应用 Sensing & Instrumentation, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TSOP34438 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
TSOP32138 威世 | 完全替代 | TSOP34438和TSOP32138的区别 |
TSOP34338 威世 | 完全替代 | TSOP34438和TSOP34338的区别 |
TSOP32338 威世 | 完全替代 | TSOP34438和TSOP32338的区别 |
