高输出驱动运算放大器,带有关断 HIGH-OUTPUT-DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN
The TLV411x single supply operational amplifiers provide output currents in excess of 300 mA at 5 V. This enables standard pin-out amplifiers to be used as high current buffers or in coil driver applications. The TLV4110 and TLV4113 come with a shutdown feature.
The TLV411x is available in the ultra-small MSOP PowerPAD package, which offers the exceptional thermal impedance required for amplifiers delivering high current levels.
All TLV411x devices are offered in SOIC single and dual and MSOP PowerPAD dual.
输出电流 320mA @5V
供电电流 700 µA
电路数 2
通道数 2
耗散功率 2.39 W
共模抑制比 68 dB
输入补偿漂移 3.00 µV/K
带宽 2.7 MHz
转换速率 1.57 V/μs
增益频宽积 2.7 MHz
输入补偿电压 175 µV
输入偏置电流 0.3 pA
工作温度Max 125 ℃
工作温度Min -55 ℃
增益带宽 2.7 MHz
耗散功率Max 2390 mW
共模抑制比Min 65dB ~ 70dB
电源电压 2.5V ~ 6V
安装方式 Surface Mount
引脚数 10

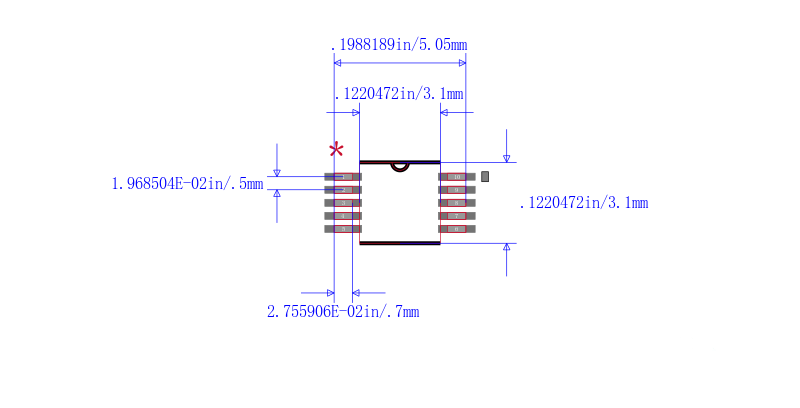

封装 PowerPad-MSOP-10
封装 PowerPad-MSOP-10
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV4113MDGQREP TI 德州仪器 | 当前型号 | 当前型号 |
V62/06646-04ZE 德州仪器 | 功能相似 | TLV4113MDGQREP和V62/06646-04ZE的区别 |
