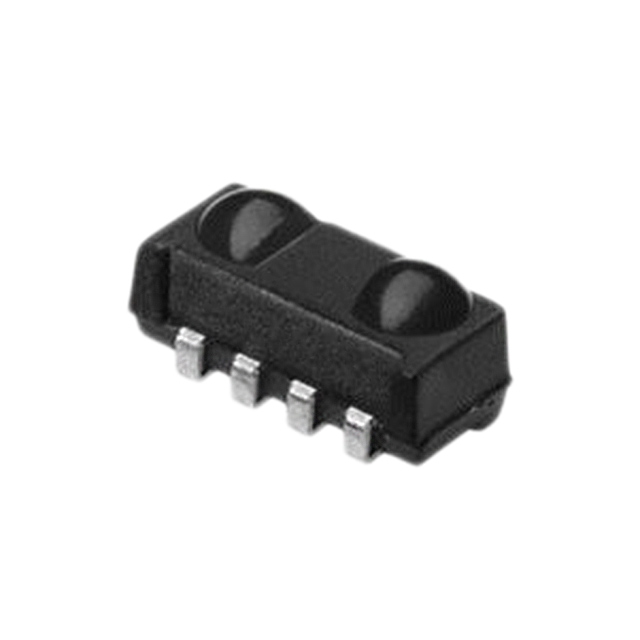

VISHAY TSOP77436TR Infrared Receiver, 36kHz, 40m, 50°, 5.5V, 2.5V, -25℃
* Improved immunity against HF and RF noise * Low supply current * Photo detector and preamplifier in one package * Internal filter for PCM frequency * Supply voltage: 2.5 V to 5.5 V * Improved immunity against optical noise * Capable of side or top view * Insensitive to supply voltage ripple and noise * Two lenses for high sensitivity and wide receiving angle
得捷:
SENSOR REMOTE REC 36.0KHZ 40M
艾睿:
IR Receiver Modules for Remote Control Systems
安富利:
This miniaturized SMD IR receiver modules for infrared remote control systems. Two PIN diodes and a preamplifier are assembled on a leadframe, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding.The TSOP774.. series devices are optimized to suppress almost all spurious pulses from Wi-Fi and CFL sources. They may suppress some data signals if continuously transmitted.The TSOP772.. series devices are provided primarily for compatibility with old AGC2 designs. New designs should prefer the TSOP774.. series containing the newer AGC4. These components have not been qualified according to automotive specifications.
