IR 远程控制接收器,表面安装封装,Vishay SemiconductorVishay IR 接收器用于远程控制和红外通信应用、红外代码学习/转发器、红外光挡板和红外接近传感器。 红外接收器在 840nm 和 960nm 范围内工作。高灵敏度,长传输范围 30KHz 至 56KHz 的载波频率 ### IR 远程控制接收器,Vishay Semiconductor

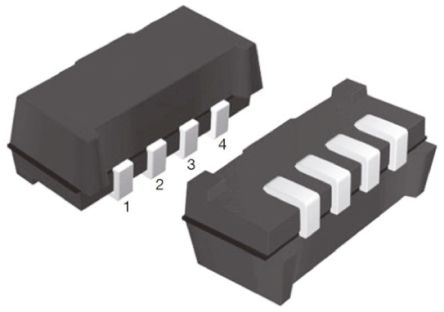

The is a miniaturized SMD IR Receiver Module for infrared remote control systems. Two PIN diodes and a preamplifier are assembled on a lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. It is optimized to suppress almost all spurious pulses from energy saving lamps like CFLs. It contains the newer AGC4 designs and it may suppress some data signals.
电源电压DC 2.50V min
输出电流 5 mA
供电电流 350 µA
针脚数 4
视角 100°
耗散功率 10 mW
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 4
封装 SMD-4
长度 6.8 mm
宽度 3 mm
高度 2.35 mm
封装 SMD-4
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Industrial, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
