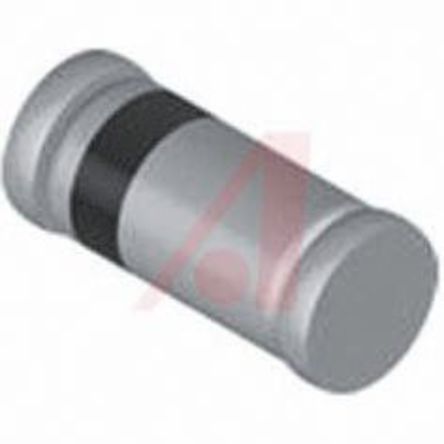

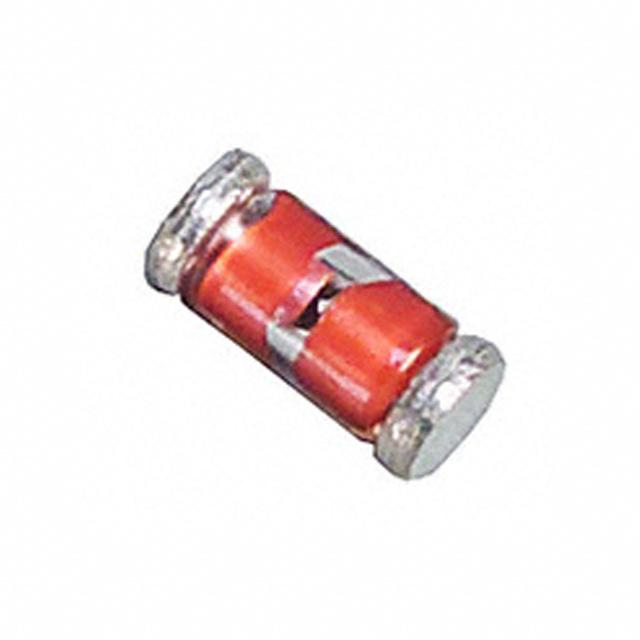

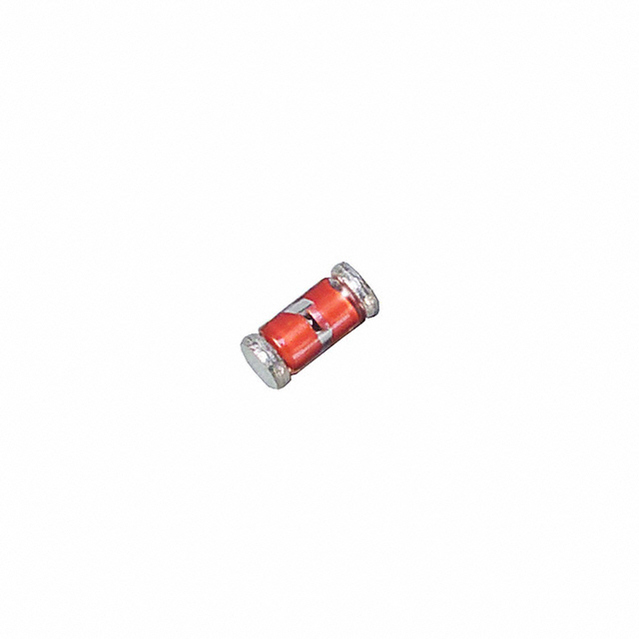

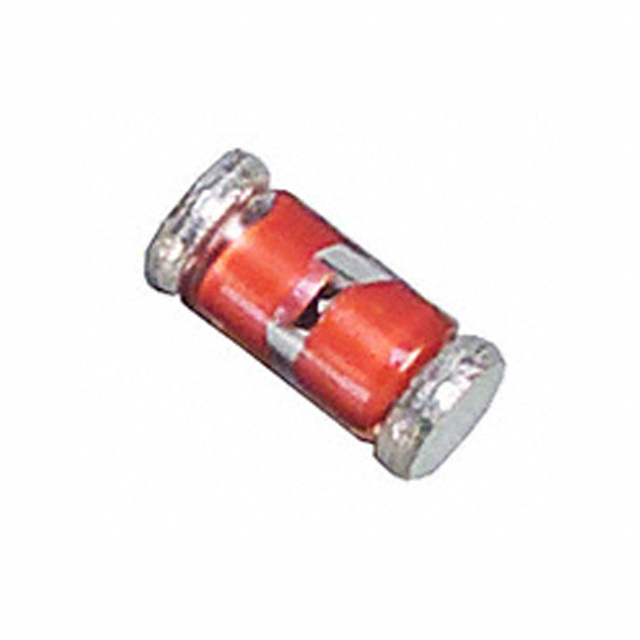

STMICROELECTRONICS TMMBAT41FILM 小信号肖特基二极管, 单, 100 V, 200 mA, 1 V, 750 mA, 150 °C
反向电压Vr Reverse VoltageVr | 100V \---|--- 平均整流电流Io Average Rectified CurrentIo | 0.1A 最大正向压降VF Forward VoltageVf | 0.45V 结电容值Cj Junction capacitanceCj | 2PF 耗散功率 Pd Power Dissipation | 0.1W 描述与应用 |
得捷:
DIODE SCHOT 100V 100MA MINI MELF
欧时:
### 肖特基势垒二极管,最大 1A,STMicroelectronics高功率、高效率和高密度。### 二极管和整流器,STMicroelectronics
贸泽:
肖特基二极管与整流器 SMALL SIGNAL SCHOTTKY DIODE
艾睿:
Switch from an AC voltage to a DC voltage using a small signal Schottky diode TMMBAT41FILM rectifier from STMicroelectronics. Its maximum power dissipation is 100 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 125 °C. Its peak non-repetitive surge current is 0.75 A, while its maximum continuous forward current is 0.1 A.
安富利:
Diode Small Signal Schottky 100V 0.1A 2-Pin Mini-MELF T/R
Chip1Stop:
Diode Small Signal Schottky 100V 0.1A 2-Pin Mini-MELF T/R
TME:
Diode: Schottky rectifying; SMD; 100V; 0.1A; MiniMELF
Verical:
Rectifier Diode Small Signal Schottky 100V 0.1A 2-Pin Mini-MELF T/R
Newark:
# STMICROELECTRONICS TMMBAT41FILM Small Signal Schottky Diode, Single, 100 V, 200 mA, 1 V, 750 mA, 150 °C
儒卓力:
**SCHOTTKY-DIODE 100V 0,1A MMELF **
Win Source:
DIODE SCHOTTKY 100V 100MA MINMLF
额定电压DC 100 V
额定电流 100 mA
电容 2.00 pF
输出电流 ≤100 mA
针脚数 2
正向电压 450mV @1mA
极性 Standard
正向电流 200 mA
最大正向浪涌电流(Ifsm) 750 mA
正向电压Max 1 V
正向电流Max 100 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-80
长度 3.4 mm
宽度 1.62 mm
高度 1.62 mm
封装 SOD-80
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TMMBAT41FILM ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LL41-GS08 威世 | 功能相似 | TMMBAT41FILM和LL41-GS08的区别 |
