TEXAS INSTRUMENTS THS4524IDBTR 差分放大器, 1 放大器, 240 µV, 95 MHz, -40 °C, 85 °C
The is a very low-power fully Differential Amplifier with rail-to-rail output and an input common-mode range that includes the negative rail. This amplifier is designed for low-power data acquisition system and high-density applications where power dissipation is a critical parameter and provides exceptional performance in audio applications. The family includes quad FDA version. This fully differential amplifier features accurate output common-mode control that allows for DC-coupling when driving analog-to-digital converters ADCs. This control, coupled with an input common-mode range below the negative rail as well as rail-to-rail output, allows for easy interfacing between single-ended, ground-referenced signal sources. Additionally, these devices are ideally suited for driving both successive-approximation register SAR and delta-sigma ΔΣ ADCs using only a single +2.5 to +5V and ground power supply.
输出电流 ≤100 mA
供电电流 1.14 mA
电路数 4
通道数 4
针脚数 38
共模抑制比 80 dB
输入补偿漂移 2.00 µV/K
带宽 95 MHz
转换速率 490 V/μs
增益频宽积 95 MHz
输入补偿电压 240 µV
输入偏置电流 700 nA
可用通道 S, D
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 145 MHz
增益带宽 95 MHz
共模抑制比Min 80 dB
安装方式 Surface Mount
引脚数 38

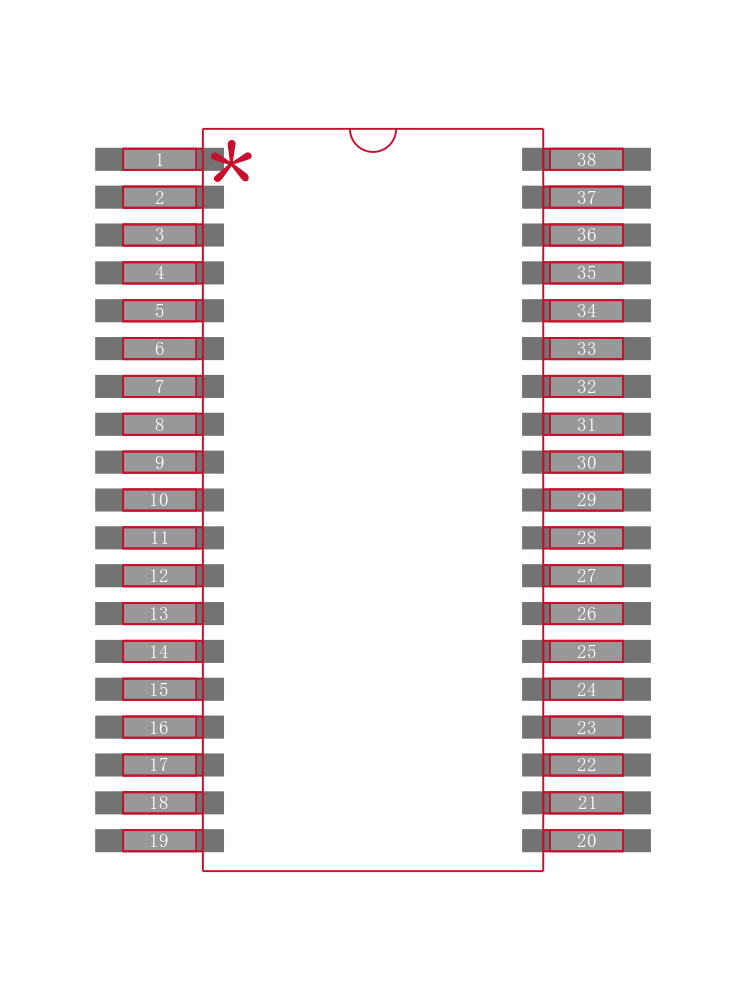

封装 TSSOP-38
长度 9.7 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-38
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 信号处理, 测试与测量, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
THS4524IDBTR TI 德州仪器 | 当前型号 | 当前型号 |
THS4524IDBT 德州仪器 | 类似代替 | THS4524IDBTR和THS4524IDBT的区别 |
