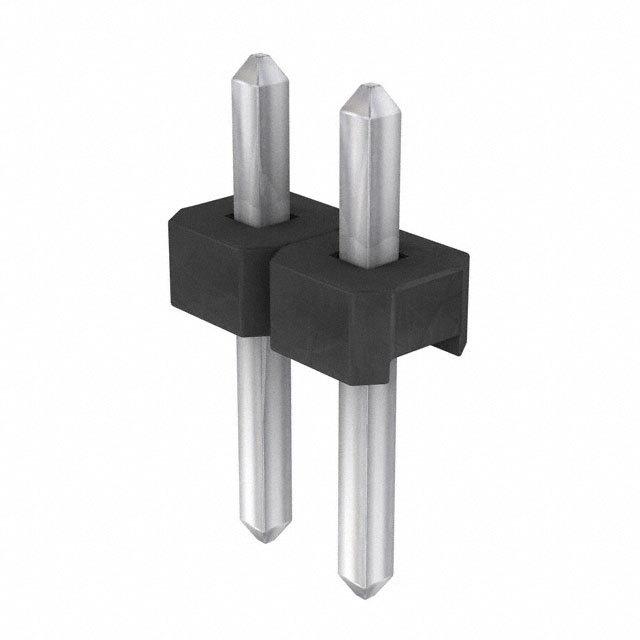

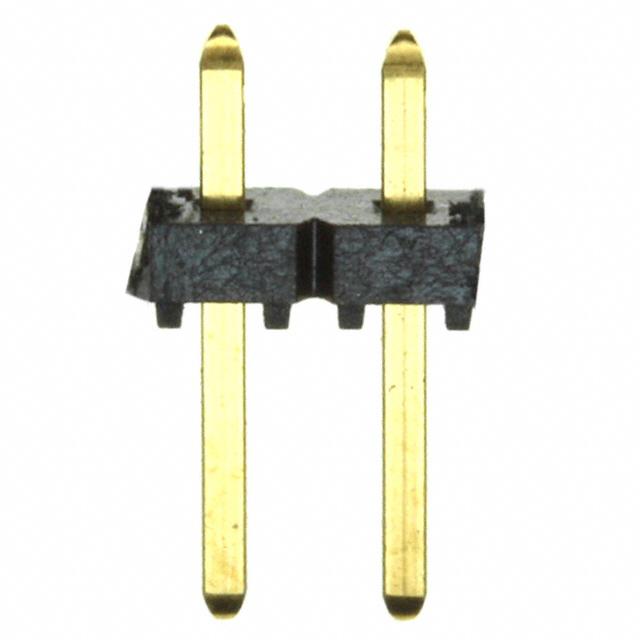

TLW-102-05-T-S

Conn Unshrouded Header HDR 2POS 2.54mm Solder ST Thru-Hole

Connector Header Through Hole 2 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 2POS 2.54MM

艾睿:
Use this unshrouded TLW-102-05-T-S connector from Samtec when board-to-board interconnects is required. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 5.2 A/contact. It uses the solder termination method. This product is 5.08 mm long, 4.19 mm tall and 2.48 mm deep. TLW-102-05-T-S is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 105 °C.

Newark:
# SAMTEC  TLW-102-05-T-S  LOW PROFILE .025 SQ STRIPS
