TLV2785AID

家庭的1.8V高速轨至轨输入输出运算放大器，带有关断 FAMILY OF 1.8V HIGH SPEED RAIL TO RAIL INPUT OUTPUT OPERATIONAL AMPLIFIERS WITH SHUTDOWN

description

The TLV278x single supply operational amplifiers provide rail-to-rail input and output capability. The TLV278x takes the minimum operating supply voltage down to 1.8 V over the extended industrial temperature range −40°C to 125°C while adding the rail-to-rail output swing feature. The TLV278x also provides 8 MHz bandwidth from only 650 µA of supply current. The maximum recommended supply voltage is 3.6 V, which allows the devices to be operated from ±1.8 V supplies down to ±0.9 V two rechargeable cells.

 Supply Voltage Range . . . 1.8 V to 3.6 V

 Rail-to-Rail Input/Output

 High Bandwidth . . . 8 MHz

 High Slew Rate . . . 4.8 V/µs

 VICR Exceeds Rails . . . −0.2 V to VDD+ 0.2

 Supply Current . . . 650 µA/Channel

 Input Noise Voltage . . . 9 nV/√Hz at 10 kHz

 Specified Temperature Range:

     0°C to 70°C . . . Commercial Grade

     −40°C to 125°C . . . Industrial Grade

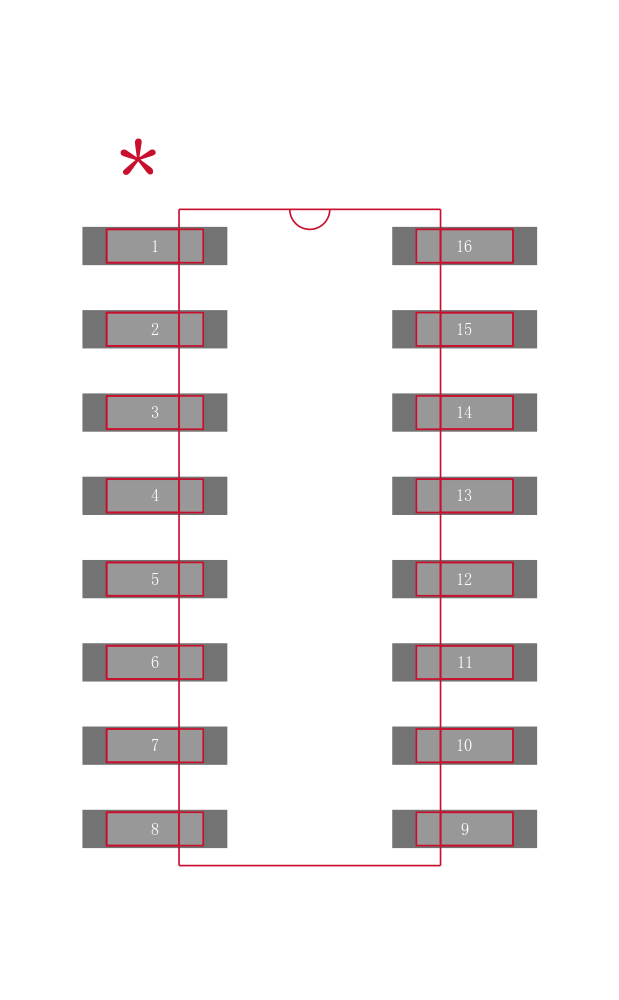

 Ultrasmall Packaging

 Universal Operational Amplifier EVM
