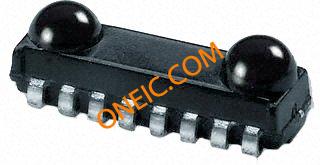

快速红外收发器模块( FIR , 4兆位/秒) Fast Infrared Transceiver Module FIR, 4 Mbit/s
* Compliant to the latest IrDA physical layer specification up to 4 Mbit/s with an extended low power range of > 70 cm typ. 1 m and TV Remote Control > 9 m * Operates from 2.4 V to 3.6 V within specification * Low power consumption 1.8 mA typ. supply current * Power shutdown mode 0.01 µA typ. shutdown current * Surface mount package - Universal L 8.5 mm x H 2.5 mm x W 3.1 mm * Tri-state-receiver output, floating in shut down with a weak pull-up * Low profile universal package capable of surface mount soldering to side and top view orientation * Directly interfaces with various Super I/O and controller devices * Only one external component required * Split power supply, transmitter and receiver can be operated from two power supplies with relaxed requirements saving costs * Lead Pb-free device * Qualified for lead Pb-free and Sn/Pb processing MSL4 * Device in accordance with RoHS 2002/95/EC and WEEE 2002/96EC
电源电压DC 2.40V min
供电电流 2 mA
针脚数 8
波长 886 nm
峰值波长 886 nm
上升时间 40 ns
下降时间 40 ns
下降时间Max 40 ns
上升时间Max 40 ns
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 2.4V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.4 V
安装方式 Surface Mount
引脚数 8
封装 SMD
长度 8.5 mm
宽度 2.5 mm
高度 3.1 mm
封装 SMD
工作温度 -25℃ ~ 85℃
产品生命周期 End of Life
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
