神剑高速低功耗精密运算放大器 EXCALIBUR HIGH-SPEED LOW-POWER PRECISION OPERATIONAL AMPLIFIERS
description
The TLE202x, TLE202xA, and TLE202xB devices are precision, high-speed, low-power operational amplifiers using a new Texas Instruments Excalibur process. These devices combine the best features of the OP21 with highly improved slew rate and unity-gain bandwidth. The complementary bipolar Excalibur process utilizes isolated vertical pnp transistors that yield dramatic improvement in unity-gain bandwidth and slew rate over similar devices.
Supply Current . . . 300 µA Max
High Unity-Gain Bandwidth . . . 2 MHz Typ
High Slew Rate . . . 0.45 V/µs Min
Supply-Current Change Over Military Temp Range . . . 10 µA Typ at VCC ± = ± 15 V
Specified for Both 5-V Single-Supply and ±15-V Operation
Phase-Reversal Protection
High Open-Loop Gain . . . 6.5 V/µV 136 dB Typ
Low Offset Voltage . . . 100 µV Max
Offset Voltage Drift With Time 0.005 µV/mo Typ
Low Input Bias Current . . . 50 nA Max
Low Noise Voltage . . . 19 nV/√Hz Typ
供电电流 1.05 mA
电路数 4
通道数 4
耗散功率 1.15 W
共模抑制比 82 dB
输入补偿漂移 2.00 µV/K
带宽 1.70 MHz
转换速率 500 mV/μs
增益频宽积 1.7 MHz
输入补偿电压 750 µV
输入偏置电流 45 nA
增益带宽 2.8 MHz
耗散功率Max 1150 mW
共模抑制比Min 82 dB
安装方式 Through Hole

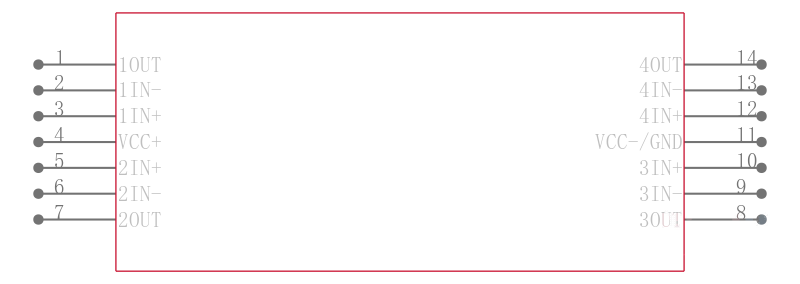

引脚数 14

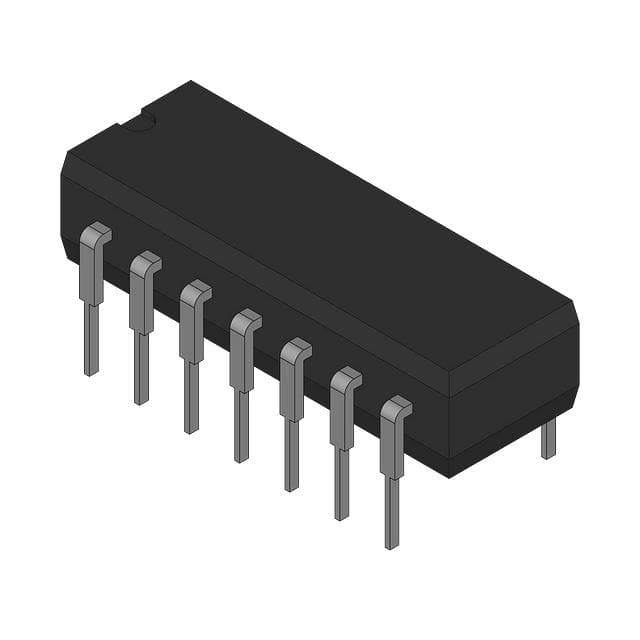

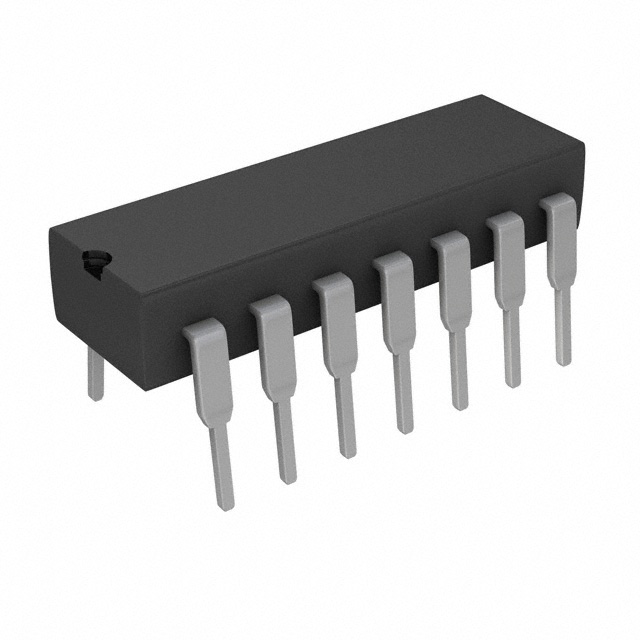

封装 PDIP-14
封装 PDIP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLE2024AIN TI 德州仪器 | 当前型号 | 当前型号 |
TLE2024AINE4 德州仪器 | 类似代替 | TLE2024AIN和TLE2024AINE4的区别 |
