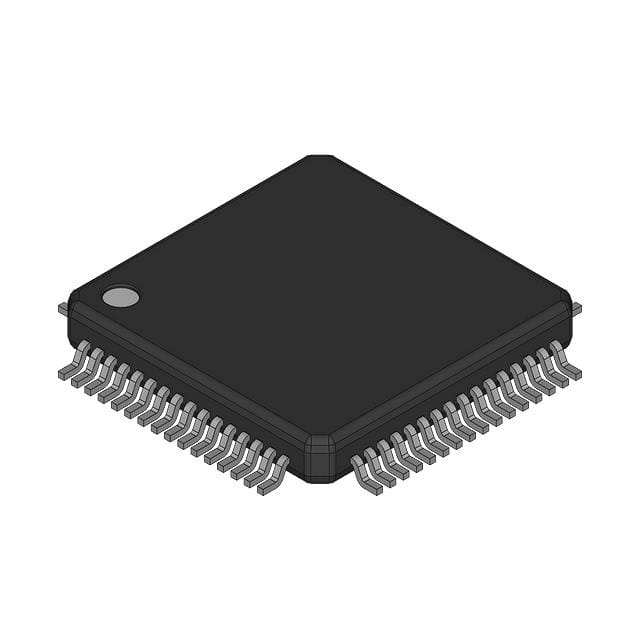

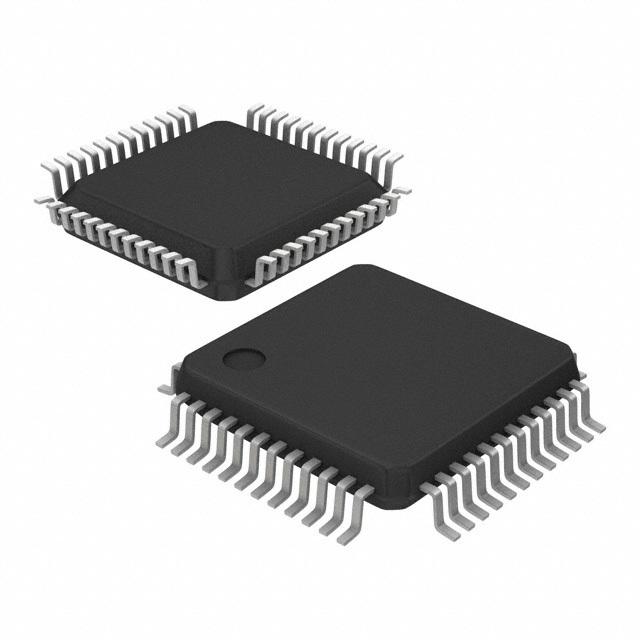

TEXAS INSTRUMENTS TM4C123AH6PMI 微控制器, 32位, Tiva, ARM 皮质-M4F, 80 MHz, 256 KB, 32 KB, 64 引脚, LQFP
The is a high performance 32-bit ARM® Cortex®-M4F based Microcontroller targeted for industrial applications. The 80MHz processor core with system timer SysTick, integrated nested vectored interrupt controller NVIC, wake-up interrupt controller WIC with clock gating, memory protection unit MPU, embedded trace macro and trace port, system control block SCB and thumb-2 instruction set. On-chip memory, featuring 256kB single-cycle flash up to 40MHz, 32kB single-cycle SRAM, internal ROM loaded with TivaWare™ for C Series software, 2kB EEPROM. Advanced serial integration featuring eight UARTs with IrDA, 9-bit and support one UART with modem status and modem flow control, four synchronous serial interface SSI modules, supporting operation for NXP SPI, MICROWIRE or synchronous serial interfaces, six I²C modules, providing standard 100kbps and fast 400kbps transmission and support for sending and receiving data as either a master or a slave.
ESD sensitive device, take proper precaution while handling the device.
频率 80 MHz
电源电压DC 3.15V min
针脚数 64
时钟频率 80.0MHz max
RAM大小 32 KB
位数 32
FLASH内存容量 256 KB
UART数量 8
模数转换数ADC 2
输入/输出数 49 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.63 V
电源电压Min 3.13 V
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
封装 LQFP-64
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Each
制造应用 测试与测量, 安全, 通信与网络, 工业, 自动化与过程控制, HVAC, 消费电子产品, 建筑自动化
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
