宽带宽，低失真全差动放大器 WIDEBAND, LOW-DISTORTION FULLY DIFFERENTIAL AMPLIFIERS
Need to have an indication of current being drawn in parts of your circuit? Implement this differential amplifier differential amplifier from Texas Instruments for current sensing features. It has a differential output. Its maximum power dissipation is 1020 mW. Its typical dual supply voltage is ±5 V, with a minimum of ±2.25 V and maximum of ±7.5 V. This part has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device uses one or two power supplies. It has a single channel per chip.
输出电流 100mA @5V
供电电流 23 mA
电路数 1
通道数 1
耗散功率 1020 mW
共模抑制比 74 dB
输入补偿漂移 10.0 µV/K
带宽 370 MHz
转换速率 2.80 kV/μs
增益频宽积 300 MHz
输入补偿电压 1 mV
输入偏置电流 4 µA
可用通道 S
工作温度Max 70 ℃
工作温度Min 0 ℃
3dB带宽 370 MHz
增益带宽 300 MHz
耗散功率Max 1020 mW
共模抑制比Min 60dB ~ 75dB
电源电压Max 15V ~ 18V
电源电压Min 4.5 V
安装方式 Surface Mount

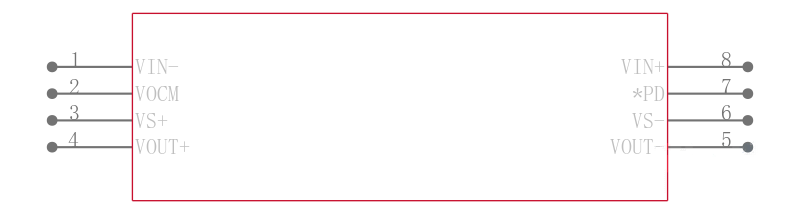

引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
THS4503CD TI 德州仪器 | 当前型号 | 当前型号 |
THS4503CDR 德州仪器 | 完全替代 | THS4503CD和THS4503CDR的区别 |
THS4503ID 德州仪器 | 类似代替 | THS4503CD和THS4503ID的区别 |
THS4502ID 德州仪器 | 类似代替 | THS4503CD和THS4502ID的区别 |
