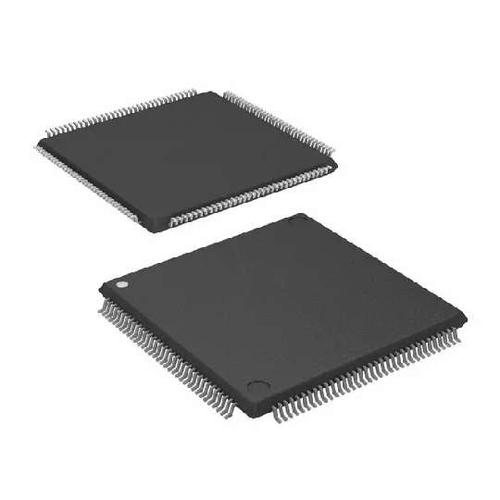

TEXAS INSTRUMENTS TM4C123GH6PGEI 微控制器, 32位, Tiva, ARM 皮质-M4F, 80 MHz, 256 KB, 32 KB, 144 引脚, LQFP
The is a 32-bit Microcontroller provide a high-performance ARM Cortex-M-based architecture with a broad set of integration capabilities and a strong ecosystem of software and development tools. Targeting performance and flexibility, the Tiva™ C series architecture offers a 80MHz Cortex-M with FPU, a variety of integrated memories and multiple programmable GPIO. Tiva™ C series devices offer consumers compelling cost-effective solutions by integrating application-specific peripherals and providing a comprehensive library of software tools which minimize board costs and design-cycle time. The Tiva™ C series microcontrollers are the leading choice in high-performance 32-bit applications. The device incorporates on-chip memory featuring 256kB single-cycle flash up to 40MHz a prefetch buffer improves performance above 40MHz, 32kB single-cycle SRAM, internal ROM loaded with StellarisWare® software and 2kB EEPROM.
频率 80 MHz
电源电压DC 1.32V min
针脚数 144
时钟频率 80.0MHz max
RAM大小 32 KB
位数 32
FLASH内存容量 256 KB
UART数量 8
模数转换数ADC 2
输入/输出数 105 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 1.32 V
电源电压Min 1.32 V
安装方式 Surface Mount
引脚数 144
封装 LQFP-144
封装 LQFP-144
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 自动化与过程控制, 替代能源, 建筑自动化, 测试与测量, 照明, 后勤, 医用, 消费电子产品, 安全, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TM4C123GH6PGEI TI 德州仪器 | 当前型号 | 当前型号 |
TM4C1233H6PGEIR 德州仪器 | 完全替代 | TM4C123GH6PGEI和TM4C1233H6PGEIR的区别 |
TM4C123GH6PGET 德州仪器 | 类似代替 | TM4C123GH6PGEI和TM4C123GH6PGET的区别 |
TM4C1233H6PGEI 德州仪器 | 类似代替 | TM4C123GH6PGEI和TM4C1233H6PGEI的区别 |
