高性能低电压运算放大器 HIGH-PERFORMANCE LOW-VOLTAGE OPERATIONAL AMPLIFIERS
The TLV236x devices are high-performance dual operational amplifiers built using an original Texas Instruments bipolar process. These devices can be operated at a very low supply voltage ±1 V, while maintaining a wide output swing. The TLV236x devices offer a dramatically improved dynamic range of signal conditioning in low-voltage systems. The TLV236x devices also provide higher performance than other general-purpose operational amplifiers by combining higher unity-gain bandwidth and faster slew rate. With their low distortion and low-noise performance, these devices are well suited for audio applications.
电源电压DC 5.00 V
输出电流 ≤20 mA
供电电流 1.75 mA
电路数 1
通道数 1
共模抑制比 85 dB
输入补偿漂移 0.00 V/K
带宽 6.00 MHz
转换速率 3.00 V/μs
增益频宽积 7 MHz
输入补偿电压 1 mV
输入偏置电流 20 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 7 MHz
共模抑制比Min 85dB ~ 90dB
电源电压Max 5 V
电源电压Min 2 V
安装方式 Surface Mount

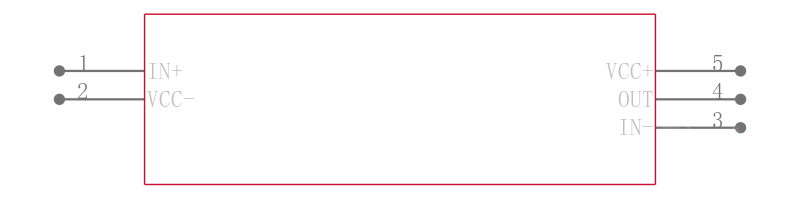

引脚数 5

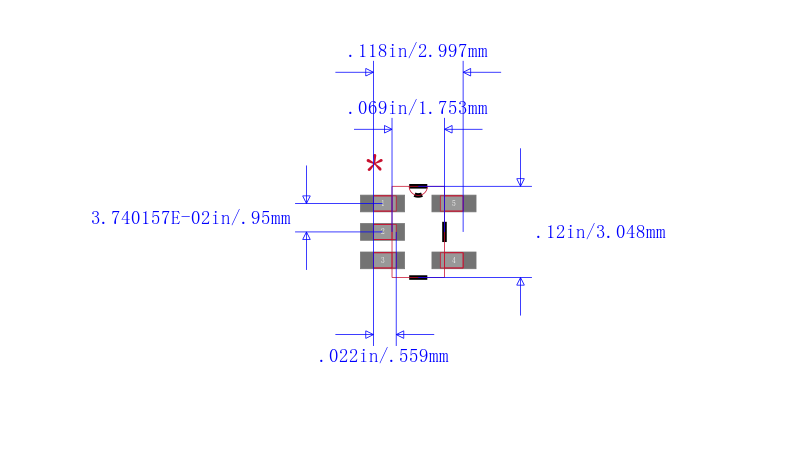

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TLV2361CDBVR TI 德州仪器 | 当前型号 | 当前型号 |
TLV2361CDBVRG4 德州仪器 | 完全替代 | TLV2361CDBVR和TLV2361CDBVRG4的区别 |
TLV2361CDBVRE4 德州仪器 | 完全替代 | TLV2361CDBVR和TLV2361CDBVRE4的区别 |
TLV2361CDBVTE4 德州仪器 | 完全替代 | TLV2361CDBVR和TLV2361CDBVTE4的区别 |
