JFET输入运算放大器 JFET-INPUT OPERATIONAL AMPLIFIERS
The TL08xx JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.
得捷:
IC OPAMP JFET 4 CIRCUIT 14SO
立创商城:

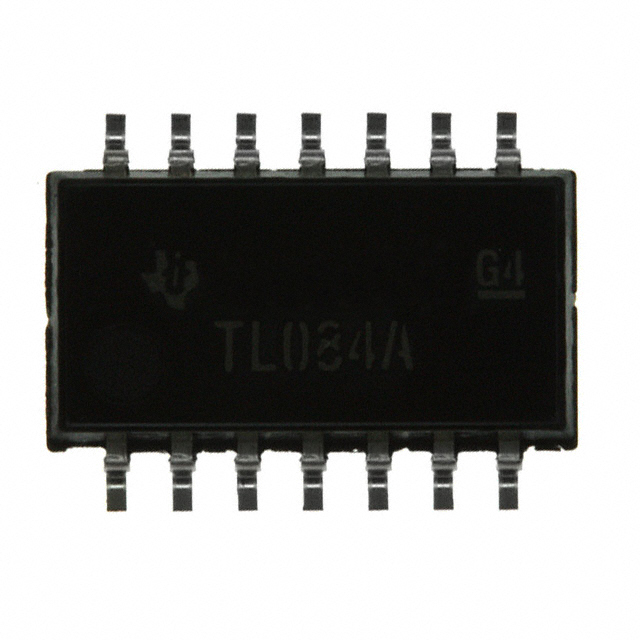

TL084ACNSR
德州仪器TI:
Quad, 30-V, 3-MHz, 13-V/µs slew rate, 6-mV offset voltage, In to V+, JFET-input op amp
贸泽:
运算放大器 - 运放 Quad JFET Neg Input
艾睿:
To increase the amount of gain in your circuit use a multiple number of this general purpose amplifier TL084ACNSR OP amp from Texas Instruments in a cascaded fashion. Its typical dual supply voltage is ±5|±9|±12|±15 V, with a minimum of ±3.5 V and maximum of ±18 V. This op amp has a temperature range of 0 °C to 70 °C. It has 4 channels per chip. This device uses dual power supplies. This device utilizes bifet technology.
Chip1Stop:
Standard Linear AmplifierJFET-Input Operational Amplifier OP Amp Quad GP ±18V 14-Pin SOP T/R
Verical:
OP Amp Quad GP ±18V 14-Pin SOP T/R
Win Source:
IC OPAMP JFET 3MHZ 14SO
DeviceMart:
IC OPAMP JFET 3MHZ QUAD 14SOP
供电电流 1.4 mA
电路数 4
通道数 4
共模抑制比 75 dB
输入补偿漂移 18.0 µV/K
带宽 3.00 MHz
转换速率 13.0 V/μs
增益频宽积 3 MHz
输入补偿电压 6 mV
输入偏置电流 0.2 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 3 MHz
共模抑制比Min 75 dB
安装方式 Surface Mount
引脚数 14
封装 SOP-14
封装 SOP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL084ACNSR TI 德州仪器 | 当前型号 | 当前型号 |
TL084ACNSRE4 德州仪器 | 完全替代 | TL084ACNSR和TL084ACNSRE4的区别 |
TL084ACNSRG4 德州仪器 | 类似代替 | TL084ACNSR和TL084ACNSRG4的区别 |
