系列低功耗轨至轨输入/输出运算AMPPLIFIERS具有关断功能的 FAMILY OF LOW-POWER RAIL-TO-RAIL INPUT/OUTPUT OPERATIONAL AMPPLIFIERS WITH SHUTDOWN
description
The TLV246x is a family of low-power rail-to-rail input/output operational amplifiers specifically designed for portable applications. The input common-mode voltage range extends beyond the supply rails for maximum dynamic range in low-voltage systems. The amplifier output has rail-to-rail performance with high-output-drive capability, solving one of the limitations of older rail-to-rail input/output operational amplifiers. This rail-to-rail dynamic range and high output drive make the TLV246x ideal for buffering analog-to-digital converters.
• Controlled Baseline
− One Assembly/Test Site, One Fabrication Site
• Extended Temperature Performance of −55°C to 125°C
• Enhanced Diminishing Manufacturing Sources DMS Support
• Enhanced Product Change Notification
• Qualification Pedigree†
• Rail-to-Rail Output Swing
• Gain Bandwidth Product . . . 6.4 MHz
• ±80 mA Output Drive Capability
• Supply Current . . . 500 µA/channel
• Input Offset Voltage . . . 100 µV
• Input Noise Voltage . . . 11 nV/√Hz
• Slew Rate . . . 1.6 V/µs
• Micropower Shutdown Mode TLV2460/3 . . . 0.3 µA/Channel
• Universal Operational Amplifier EVM
供电电流 550 µA
电路数 4
通道数 1
共模抑制比 71 dB
输入补偿漂移 2.00 µV/K
带宽 5.20 MHz
转换速率 1.60 V/μs
增益频宽积 6.4 MHz
过温保护 No
输入补偿电压 1.5 mV
输入偏置电流 14 nA
工作温度Max 125 ℃
工作温度Min -55 ℃
增益带宽 6.4 MHz
共模抑制比Min 71 dB
安装方式 Surface Mount

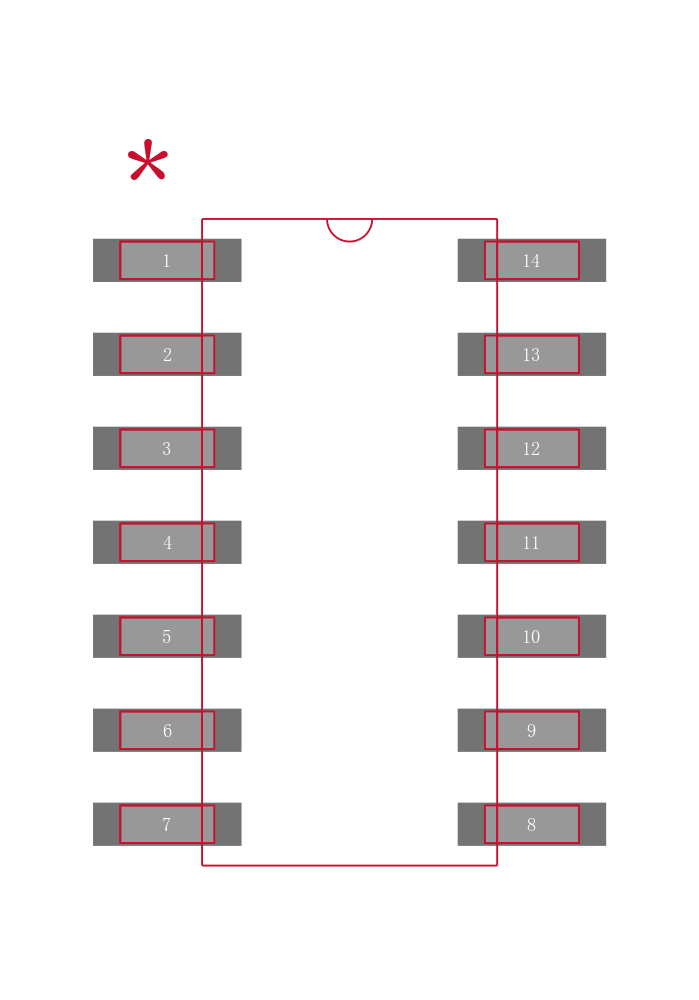

引脚数 14
封装 SOIC-14
长度 8.65 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-14
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV2464AMDREP TI 德州仪器 | 当前型号 | 当前型号 |
TLV2464AMDREPG4 德州仪器 | 类似代替 | TLV2464AMDREP和TLV2464AMDREPG4的区别 |
V62/03619-07YE 德州仪器 | 类似代替 | TLV2464AMDREP和V62/03619-07YE的区别 |
