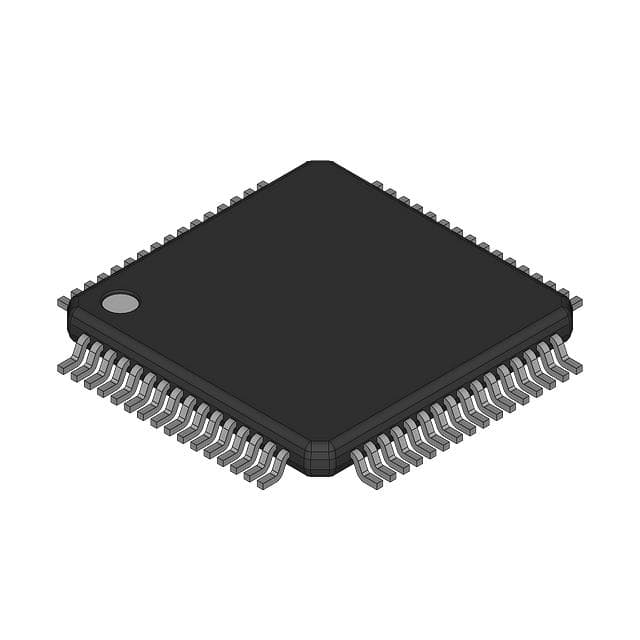

TEXAS INSTRUMENTS TMS320F28034PAGT 微控制器, 32位, Piccolo, C2000, 60 MHz, 64 KB, 10 KB, 64 引脚, TQFP
The is a 32-bit Piccolo Microcontroller provides the power of the C28x core and control law accelerator CLA coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, as well as providing a high level of analog integration. An internal voltage regulator allows for single-rail operation. Enhancements have been made to the HRPWM module to allow for dual-edge control frequency modulation. Analog comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.
频率 60 MHz
针脚数 64
时钟频率 60.0 MHz
RAM大小 10 KB
位数 32
FLASH内存容量 128 kB
UART数量 1
模数转换数ADC 1
输入/输出数 33 Input
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 1.995 V
电源电压Min 1.71 V
安装方式 Surface Mount
引脚数 64
封装 TQFP-64
高度 1.05 mm
封装 TQFP-64
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 电源管理, 工业, 后勤, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TMS320F28034PAGT TI 德州仪器 | 当前型号 | 当前型号 |
TMS320F28034PAGQ 德州仪器 | 类似代替 | TMS320F28034PAGT和TMS320F28034PAGQ的区别 |
TMS320F28034PAGS 德州仪器 | 类似代替 | TMS320F28034PAGT和TMS320F28034PAGS的区别 |
