TSW-102-26-S-S

2.54mm 方针

针座 通孔 2 位置 0.100"（2.54mm）

欧时:
Classic PCB HDR Strips 0.100"

得捷:
CONN HEADER VERT 2POS 2.54MM

立创商城:
2.54mm 方针

艾睿:

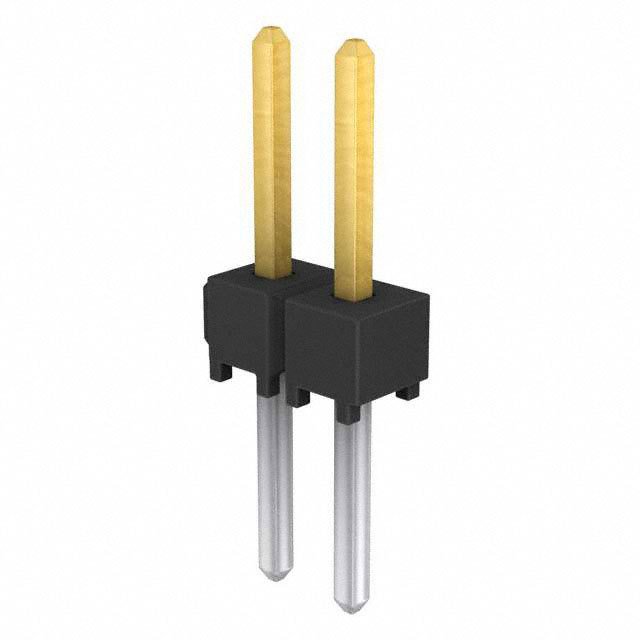

Make strong and binding connections on your circuit boards by adopting this unshrouded TSW-102-26-S-S connector from Samtec. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. It has a header type gender. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 5.08 mm long, 8.38 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. TSW-102-26-S-S is housed in black polyester.

安富利:
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-102-26-S-S  .025 Sq. Terminal Strips
