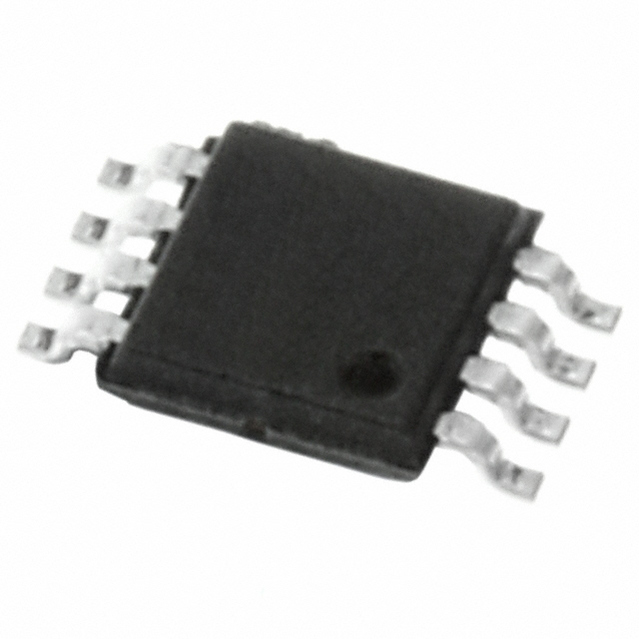

TS27 系列 TSSOP8 高精度 极低功耗 双通道 CMOS 运算放大器
CMOS 放大器 2 电路 - 8-TSSOP
得捷:
IC CMOS 2 CIRCUIT 8TSSOP
立创商城:
TS27L2CPT
艾睿:
The infinite open-loop gain, high input impedance and low output impedance of this general purpose amplifier TS27L2CPT OP amp from STMicroelectronics produces a large amount of gain. This op amp has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device uses a single power supply. This device is made with CMOS technology. It has 2 channels per chip.
安富利:
OP Amp Dual GP 16V 8-Pin TSSOP T/R
富昌:
TS27L2 Series 16 V 0.1 MHz Low Power CMOS Dual Operational Amplifier - TSSOP-8
Chip1Stop:
OP Amp Dual GP 16V 8-Pin TSSOP T/R
Verical:
Op Amp Dual Low Power Amplifier 16V 8-Pin TSSOP T/R
儒卓力:
**2xOP 0.1MHz 0,04V/µs TSSOP8_SMD **
Win Source:
IC OPAMP GP 100KHZ 8TSSOP
输出电流 45mA @10V
供电电流 10 µA
电路数 2
通道数 2
共模抑制比 80 dB
转换速率 40.0 mV/μs
增益频宽积 0.1 MHz
输入补偿电压 1.1 mV
输入偏置电流 1 pA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 100 kHz
共模抑制比Min 65 dB
电源电压 3V ~ 6V
安装方式 Surface Mount
引脚数 8
封装 TSSOP-8
封装 TSSOP-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TS27L2CPT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TS27L2CP 意法半导体 | 功能相似 | TS27L2CPT和TS27L2CP的区别 |
