TS951IYLT

输入/输出轨至轨低功耗运算放大器 Input/output rail-to-rail low power operational amplifier

**Description**

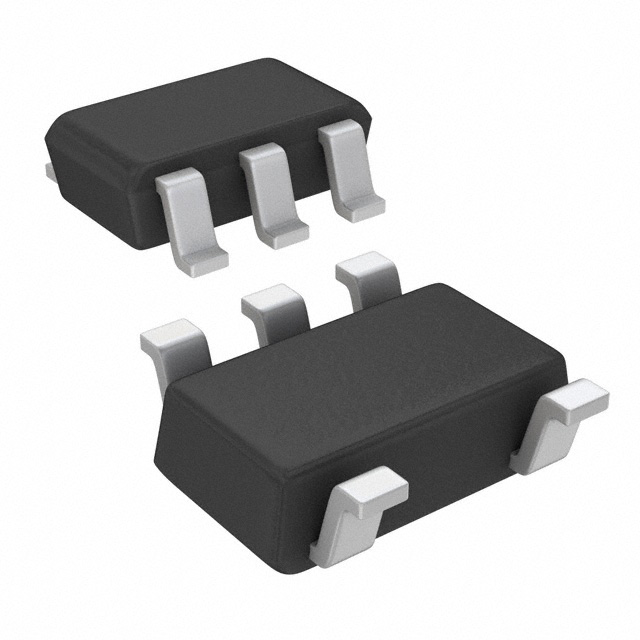

The TS95x family are rail-to-rail BiCMOS operational amplifiers optimized and fully specified for 3V and 5V operation. The TS951 is housed in the space-saving 5 pins SOT23 package that makes it well suited for battery-powered systems. This micropackage simplifies the PC board design because of it’s ability to be placed in tight spaces outside dimensions are: 2.8mm x 2.9mm

■ Rail-to-rail input common-mode voltage range

■ Rail-to-rail output voltage swing

■ Operating from 2.7V to 12V

■ High-speed 3MHz, 1V/µs

■ Low consumption 0.9mA @ 3V

■ Supply voltage rejection ratio: 80dB

■ Latch-up immunity

■ Available in SOT23-5 micropackage

**Applications**

■ Set-top boxes

■ Laptop/notebook computers

■ Transformer/line drivers

■ Personal entertainments CD players

■ Portable communication cell phones, pagers

■ Instrumentation & sensoring

■ Digital to analog converter buffers

■ Portable headphone speaker drivers
