TSW-102-23-G-S

SAMTEC TSW-102-23G-S Board-To-Board Connector, 2.54mm, 2Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 2 位置 0.100"（2.54mm）

欧时:
.100" Terminal Strip

得捷:
CONN HEADER VERT 2POS 2.54MM

艾睿:

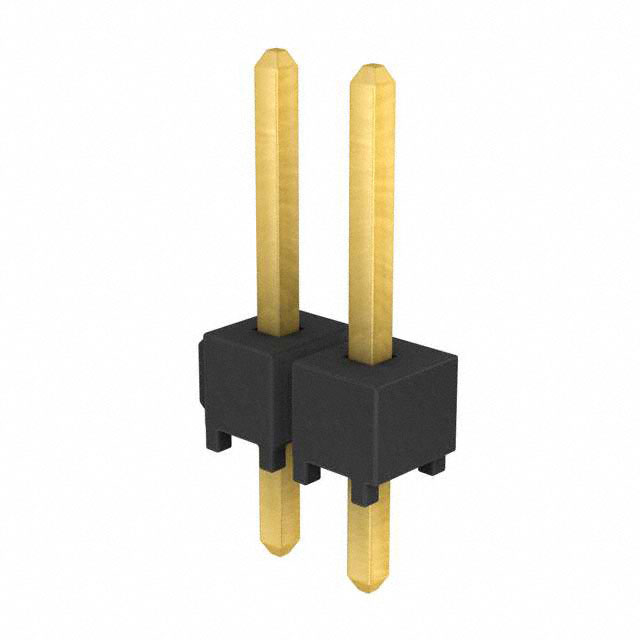

Reduce safety concerns with this unshrouded TSW-102-23-G-S header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 1-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. TSW-102-23-G-S is housed in black polyester. This product is 5.08 mm long, 8.38 mm tall and 2.54 mm deep.

安富利:
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-102-23-G-S  Board-To-Board Connector, 2.54 mm, 2 Contacts, Header, TSW Series, Through Hole, 1 Rows
