Operational Amplifiers - Op Amps LP 180uA 5V 50nA 0.8V mV 2.5V to 5.5V
* Low power consumption: 180 μA max at 5 V * Low power shutdown mode: 50 nA max * Low offset voltage: 0.8 mV max at 25 °C * Tiny packages * Extended temperature range: -40 °C to 125 °C * Low supply voltage: 2.3 V - 5.5 V * Gain bandwidth product: 1.3 MHz * Automotive qualification * Benefits * Longer lifetime in battery-powered applications * Higher accuracy without calibration * Smaller form factor than equivalent competitor devices * Application performances guaranteed over wide temperature ranges * Related products * See LMV82x series for higher gain bandwidth product 5.5 MHz
输出电流 70mA @5V
供电电流 130 µA
电路数 2
通道数 2
共模抑制比 70 dB
带宽 1.30 MHz
转换速率 700 mV/μs
增益频宽积 1.3 MHz
输入补偿电压 4000 µV
输入偏置电流 27 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 1.3 MHz
共模抑制比Min 72 dB
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 8

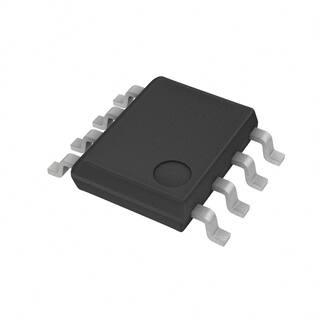

封装 Mini-SO-8
封装 Mini-SO-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
